Description

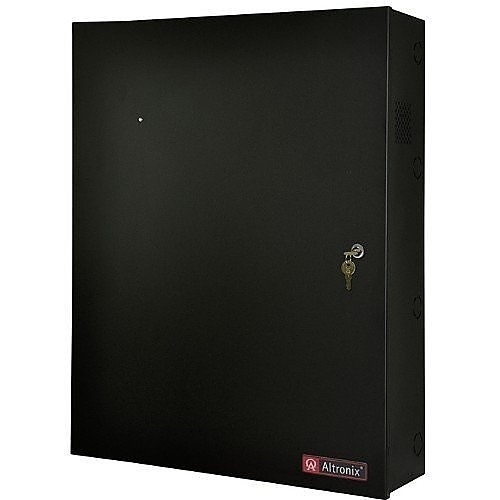

The Altronix T3MK7716 access control kit features a comprehensive assembly of industry-standard components designed for efficient security management. This kit includes the Trove3 enclosure and TM3 backplane, integrated with two robust 24 VDC, 10 A power supply/chargers. It also comprises two eight-fuse protected output access control modules and two eight-fuse protected output power distribution modules. This setup efficiently supports various configurations of Mercury security boards, allowing management of up to sixteen doors within a single enclosure. The Trove series offers simplified board layout and optimized wire management, significantly cutting down on installation time and labor costs. It is compatible with leading Mercury partner platforms in security and access control, including AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, and Vanderbilt.
**Features:**
– Two AL1024ULXB2 Power Supply/Chargers
– **Input:** 115 VAC, 60 Hz, 4.2A max
– **Main Fuse:** 5 A/250 V
– **Output Voltage/Current:** 24 VDC, 10 A continuous max
– Features include overvoltage protection, filtering, and regulation
– Supports battery backup (not included) with capacities up to 65 AH
– Two ACM8 Access Power Controllers
– **Input Voltage:** 24 VDC from AL1024ULXB2
– **Input Fuse:** 10 A/250 V
– **Output Voltage:** 24 VDC, up to eight independently controlled fused outputs
– Options for Fail-Safe/Fail-Secure outputs
– Auxiliary power outputs
– **Output Fuses:** 3.5A / 250V
– LED indicators for output status and FACP disconnect
– Two PD8UL Power Distribution Modules
– **Input Voltage:** 24 VDC from AL1024ULXB2
– **Output Voltage:** 24 VDC
– **Fuses:** 3.5 A/250 V
– LED indicators for DC Output
**Environmental Specifications:**
– **Operating Temperature:** 0° C to 49° C (32° F to 120° F)
– **Storage Temperature:** -20° C to 70° C (-4° F to 158° F)
– **Relative Humidity:** 85% +/- 5%
– **Heat Output:** 289 BTU/Hr (approx.)
