Description
The Model AL175ULB is a power supply and charger that transforms a 24VAC input into two PTC-protected outputs, delivering either 12VDC or 24VDC at 1.75 amps. These outputs are Class 2 rated and provide a power-limited current.

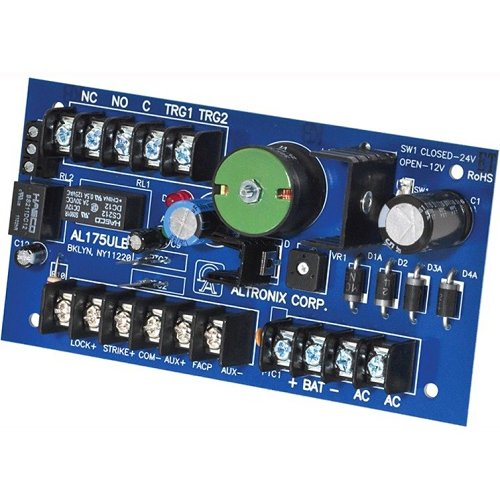

Altronix AL175ULB Access Control Power Supply Charger with PTC Class Outputs, 12/24VDC at 1.75A, Board
In Stock
In Stock
$79.46
- Power Supply and Charger Module.
- Delivers 12V DC or 24V DC at 1.75A output.
- Fire Alarm Circuit with Latching and Non-Latching Disconnect Options.
- Requires 28VAC 56VA Transformer.
- UL Recognized Component.
SKU:
AL175ULB
Categories: Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards
Brand: Altronix
| Certifications | |
| NDAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL175ULB |
| Packaged Quantity | 1 |
| Product Model | AL175ULB |
| Product Name | AL175ULB Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Miscellaneous | |
| Compatibility | Fire Alarm Control PanelAccess Control System |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Package Contents | AL175ULB Proprietary Power SupplyBattery Leads |
| Physical Characteristics | |
| Depth | 5.8" |
| Form Factor | Wall Mount |
| Height | 1.5" |
| Weight (Approximate) | 12 oz |
| Width | 3.1" |
| Power Description | |
| Input Voltage | 24V AC |
| Number of +12V Rails | 1 |
| Output Current | 1.75A |
| TBD | |
| Amperage | 1.75A |
| Technical Information | |
| Output Voltage | 12V DC, 24V DC |
| Warranty | |
| Limited Warranty | Lifetime |
