$166.21

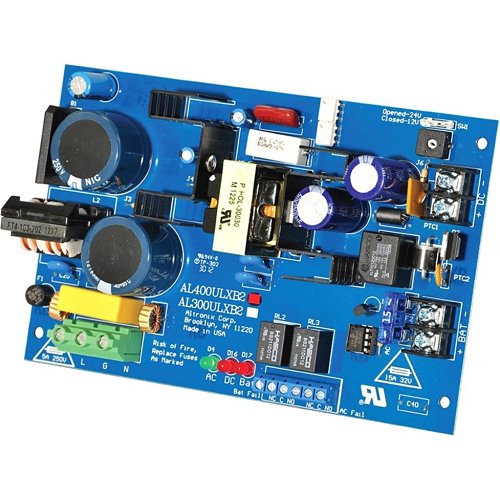

The Altronix AL400ULXB2 is a UL Listed sub-assembly power supply and charger designed to transform a 115VAC, 60Hz input into a selectable 12VDC or 24VDC Class 2 Rated, power-limited output. This power supply unit is equipped with advanced features such as AC failure supervision, battery detection, and low battery monitoring to ensure reliable performance in security and surveillance applications.
| Certifications | |
| NDAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL400ULXB2 |
| Product Model | AL400ULXB2 |
| Product Name | AL400ULXB2 UL Recognized Power Supply/Charger |
| Product Type | Proprietary Power Supply |
| Others | |
| ADI Part Number Replaces | AX-AL400ULXB |
| Model Number Replaces | AL400ULXB |
| Physical Characteristics | |
| Depth | 7.1" |
| Form Factor | Board |
| Height | 1.4" |
| Weight (Approximate) | 10.40 oz |
| Width | 4.5" |
| Power Description | |
| Input Voltage | 120V AC |
| Number of +12V Rails | 1 |
| Output Current | 4A |
| TBD | |
| Amperage | 3A, 4A |
| Technical Information | |
| Output Voltage | 12V DC, 24V DC |
| Warranty | |
| Limited Warranty | Lifetime |
