Description

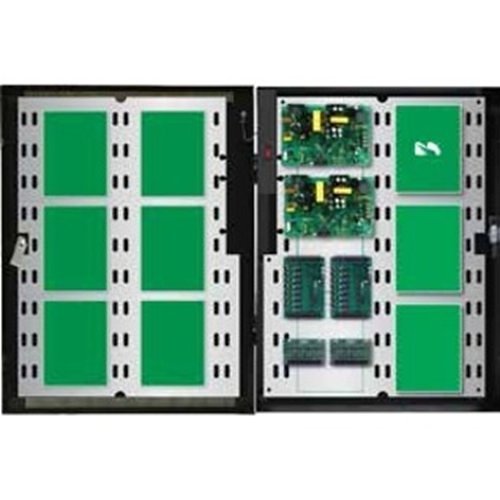

MCLASS™ Unified Power Systems integrate FlexPower® power modules with Mercury Security™ access hardware in a streamlined, secure, UL Listed configuration. This system offers dual voltage options, providing both 12V and 24V DC outputs for access control power solutions. The unit features dual C8 lock control modules that accommodate sixteen access control inputs, which can be activated via voltage or dry contacts. The sixteen outputs are programmable for failsafe or fail-secure operation at either 12 or 24 VDC, managed by an integrated fire alarm interface circuit on the FPO. Additionally, dual D8P modules offer sixteen auxiliary Class 2 power-limited outputs, each configurable for 12 or 24VDC.
The MCLASS enclosures are constructed from painted steel with a removable backplate and include a lock, two keys, and a tamper switch for enhanced security.
**System Features:**
– **FPO Offline Power Supply:**
– 120 or 230 VAC input
– 12 and 24 VDC outputs
– Integrated fire alarm interface
– Continuous and resettable DC options
– **Distributed Outputs:**
– 16 auxiliary outputs, power limited at 2.5A each
– 16 controlled outputs, fused at 3A each
– **Expansion Options:**
– Enhanced power capabilities, multiple voltages
– Additional distribution outputs
– Network monitoring and reporting features
– **Lifetime Warranty**
**Enclosure Features:**
– **Labor-Saving Design:**
– Pre-wired power section
– Pre-punched knockouts
– Removable backplate for simplified installation
– Pre-defined hole pattern for power section
– Access panels easily mount on threaded studs—no drilling required
**Additional Benefits:**
– Ample wire management space
– 6.5″ enclosure depth accommodates battery sets
– Standard features include tamper switch, lock, and dual key set
– Includes mounting hardware for access boards
