Description

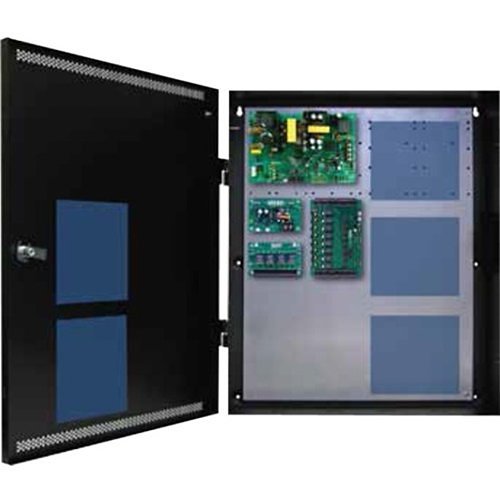

VCLASS Unified Power Solutions offer a robust and compact design, integrating FlexPower power modules with HID VERTX access control hardware. This dual voltage access power system delivers 150W with options for 12V and 24V DC outputs.
The C8 lock control module supports eight access control inputs with voltage or dry contact activation, along with eight programmable outputs for either failsafe or failsecure operations at 12 or 24 VDC. It leverages an integrated fire alarm interface circuit within the FPO. The D8 module offers eight fused outputs, each configurable for either 12 or 24 VDC.
Specifications
Input Power
- 120/230 VAC, 50/60 Hz | 170 Watts (1.41A)
- Features overload and short circuit protection
- Equipped with over-temperature protection
- Includes a polarized AC power supply disconnect
Output Power
- FPO150: 12V/12A or 24V/6A | Total 150 Watts
- Output Types: Continuous (DC1), Resettable (DC2)
- 8 auxiliary outputs, each fused at 3A
- 8 lock control outputs, each fused at 3A
- Output voltage ripple at 120 mV
- System Efficiency: 87% | System BTU Rating: 66 BTU/Hr
Battery Charging
- Includes a built-in 2A charger for sealed lead acid or gel batteries
- Microprocessor manages dual rate charging for 12 or 24 V battery setups
- Automatic switchover to battery backup during AC failure
- Zero voltage drop upon switching to battery backup
Supervision
- AC Fail indicators (form “C” contacts)
- System Fault alerts (form “C” contacts) triggered by low/no battery, short to earth ground, or power supply failure
Visual Indicators
- Displays for AC input, DC1, and DC2 output
- Indicators for system fault, AC fault, short to earth ground, and reverse battery polarity
- Active Fire Alarm Input display
- B100: Displays for DC input, output, and fault
- C8: Displays for DC input, output, and fault
- D8: Displays for DC outputs
Regulatory Compliance
- Complies with UL294, UL603, UL1076 standards
- Certified under ULC S318, ULC S319, CSA C22.2 #107.1, CSA C22.2 #60950
- Approved for CE, CSFM | FCC Part 15, Subpart B
Enclosure Dimensions
- 24.00H x 20.00W x 4.50D inches (61.00 x 51.00 x 11.50 cm)
Mounting Compatible With
- Models V1000, V100, V200, V300
