Description
BCLASS integrated power systems are designed to accommodate FlexPower® modules alongside Brivo access hardware, creating a compact and secure solution for access control.
This unit offers a dual voltage access power system capable of providing both 12V and 24V DC outputs.
The M8 managed lock control module supports eight access control inputs, allowing for voltage or dry contact activation. It features eight programmable outputs for fail-safe or fail-secure operations, either at 12V or 24V DC, managed by the integrated fire alarm interface circuit on the FPO. Additionally, the D8P module delivers eight auxiliary class II outputs, each configurable for 12V or 24V DC operation.

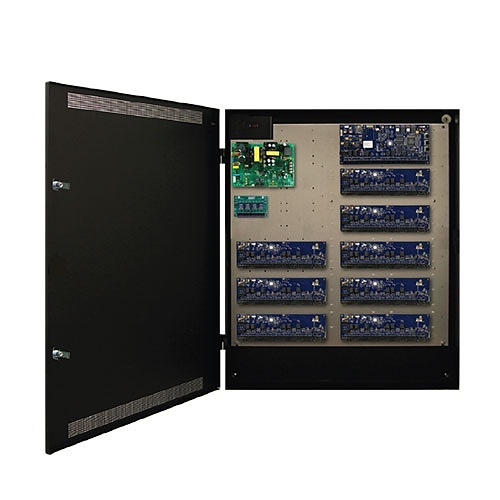

BCLASS enclosures are constructed from painted steel, featuring a removable backplate, lock, dual keys, and a tamper switch.
System Features
- FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On-board Fire Alarm Interface
- Continuous and resettable DC
Distributed Outputs
- Eight auxiliary outputs, power limited at 2.5A each
- Eight managed outputs, fused at 3A each
Remote Monitoring & Control
- Real-time voltage and current reporting
- Remote battery load testing
- Output power cycling and alert for abnormal operation
- System and AC fault reporting
- 1000 event data buffer
- Email and SNMP trap notifications
Lifetime Warranty
Enclosure Features
Labor-saving Design
- Pre-wired power section
- Pre-punched knockouts
- Removable backplate simplifies installation
- Pre-defined hole pattern for power section
- Access panels mount on threaded studs, eliminating drilling
Additional Benefits
- Room for wire management
- 4.5″ enclosure depth accommodates battery set
- Standard tamper switch, lock, and dual key set
- Includes mounting hardware for access boards
