Description

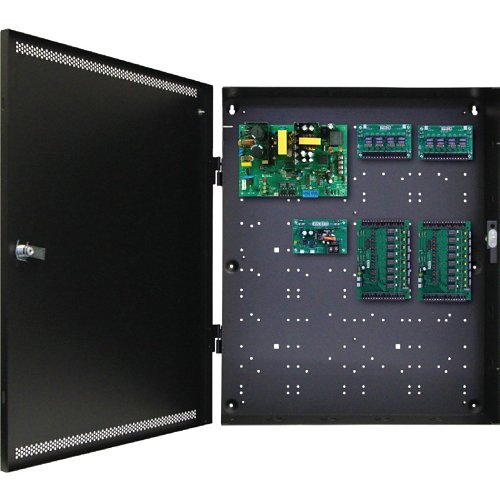

The FLEXPOWER FPO250-B1002C82D8E4 is an offline switchmode power supply and battery charger system expertly crafted for the access control sector within the life safety industry. It provides essential 12V system power, with capabilities including sixteen access-controlled trigger inputs, sixteen 12/24V access-controlled lock outputs, and sixteen 12/24V auxiliary power distribution outputs. Housed in a durable, painted steel enclosure with a lockable door, tamper switch, and integrated battery space, this unit meets high security and operational demands.
Each lock output, controlled by a relay, is customizable for fire alarm disconnect, fail-safe, fail-secure, or NO/NC dry contact functions. Auxiliary outputs can be programmed for continuous power or fail-safe, fail-secure voltage outputs. The system includes comprehensive fault detection and reporting, complete with adjustable fault delays and datalogging capabilities that track fault occurrences, battery utilization time, and current power supply status.
Designed to efficiently handle dual voltage requirements of 12 and 24VDC, this unit employs an FPO to produce 24VDC and a B100 Class 2 power-limited supply to deliver 12VDC. The FPO/B100 configuration offers notable space and cost efficiency, needing only a single battery set to support both DC voltages.
