Brand: Lifesafety Power

LifeSafety Power FPO250-B100E1 250W, Economical Dual Voltage, 4A/12V and 8A/24V, 12″ x 14″ x 4.5″ Enclosure

Name: LifeSafety Power FPO250-B100E1 250W, Economical Dual Voltage, 4A/12V and 8A/24V, 12" x 14" x 4.5" Enclosure
Brand: Lifesafety Power
SKU: FPO250-B100E1
Availability: InStock

in stock

Special Order

$428.44

**Main Features of the Power Supply System:**

- Provides reliable power to the electrical load, ensuring consistent performance.
- Compatible with a 24V DC output voltage for immediate readiness and integration.
- Offers a maximum output power of up to 250W for demanding applications.
- Features FlexPower Technology for enhanced flexibility and efficiency.
- Incorporates SureCharge, a microprocessor-controlled battery charging system for optimal battery management.
- Utilizes PowerCom software for comprehensive power supply programming and monitoring capabilities.
- Equipped with VSelect to allow installers to choose the desired output voltage.
- Includes TruWatt technology to deliver twice the current at 12V compared to 24V.
- Features PwrHealth for intelligent battery charging and detailed battery state monitoring.
- Offers FlexConnect with a dual voltage bus and pre-wired accessory board connections for seamless installations.

SKU: FPO250-B100E1 Categories: Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards Brand: Lifesafety Power

Description

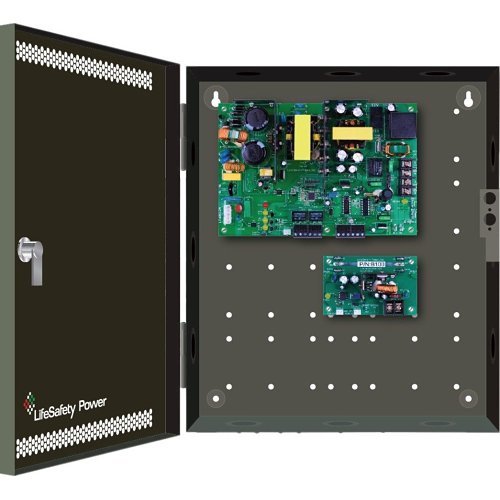

The FlexPower FPO250-B100E1 is a dual voltage offline power supply and battery charger tailored for the lifesafety sector. It features two pairs of outputs, each user-selectable for either 12 or 24 VDC, and is housed in a painted, steel, locking enclosure equipped with a tamper switch and built-in battery space. One output from each pair delivers continuous power for system operations, while the second output is configurable for either fail-safe or fail-secure functionality, triggered by the activation of the fire alarm disconnect.

General Information
Brand Name	LifeSafety Power
Manufacturer	LifeSafety Power, Inc
Manufacturer Part Number	FPO250-B100E1
Product Line	FlexPower
Product Model	FPO250-B100E1
Product Name	FlexPower FPO250-B100E1 Power Supply
Product Series	FPO
Product Type	Power Supply

Interfaces/Ports
Modular	Yes

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Depth	4.5"
Form Factor	Enclosure
Height	14"
Weight (Approximate)	10.50 lb
Width	12"

Power Description
Input Voltage	120V AC, 230V AC
Output Current	8A\|4A
Output Power	250 W

Technical Information
Efficiency	88%
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	10 Year
