**HCLASS™ Unified Power Solutions**
**Product Overview:**
HCLASS™ Unified Power Solutions are meticulously crafted to integrate FlexPower® modules with HW Pro-Watch™ access control hardware within a single streamlined, secure enclosure. This innovative unit functions as a dual voltage access power solution, delivering 12V and 24V DC power.
**Access Control Capabilities:**
The C4P managed lock control module includes four access control inputs designed for voltage or dry contact activation. It provides four programmable outputs for either failsafe or fail-secure operation, supporting both 12 and 24 VDC, all managed through the integrated fire alarm interface present on the FPO. Additionally, the D8P module offers eight auxiliary Class II outputs, each configurable for operation at either 12 or 24 VDC.
**Construction and Security:**

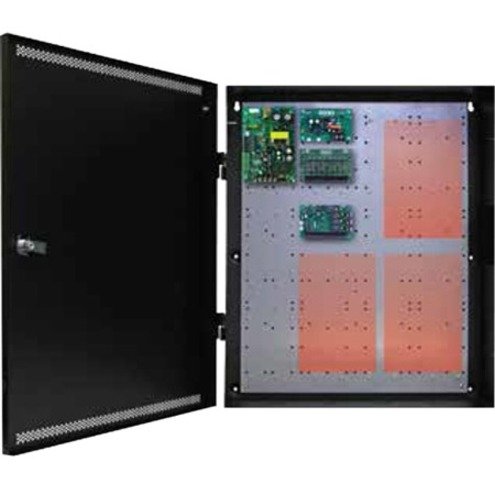

These robust HCLASS enclosures are constructed from painted steel and feature removable backplates, a lock with dual key sets, and a tamper switch.
**System Features:**
– **FPO Offline Power Supply:**
– Accepts 120 or 230 VAC input
– Provides 12 and 24 VDC outputs
– Includes onboard Fire Alarm Interface
– Offers continuous and resettable DC power
– **Distributed Outputs:**
– Eight auxiliary outputs, each power-limited at 2.5A
– Four control outputs, each power-limited at 2.5A
– **Remote Monitoring & Control:**
– Real-time voltage and current reporting
– Remote battery load testing capabilities
– Output power cycling and alerts for abnormal operation
– Comprehensive system and AC fault reporting
– Notifies via email and SNMP trap
– **Lifetime Warranty:**
**Enclosure Features:**
– **Efficient Installation Design:**
– Pre-wired power section speeds up setup
– Pre-punched knockouts enhance ease of installation
– Removable backplate facilitates simpler installation
– Pre-defined hole pattern for power module section
– Access panels easily mountable on threaded studs with no drilling
**Additional Benefits:**
– Offers ample wire management space
– 4.5″ enclosure depth designed to accommodate battery sets
– Tamper switch and dual key lock come standard
– Includes necessary mounting hardware for access boards
