Description
The ACLASS™ Unified Power Systems seamlessly integrate FlexPower® power modules with premium access control hardware to deliver a compact and secure access power solution. This advanced system offers dual voltage management with both 12V and 24V DC capabilities. It includes a single managed module featuring eight access-managed inputs that support either voltage or dry contact activation. Additionally, the module provides eight programmable outputs for failsafe or fail-secure operations, managed by an integrated fire alarm interface circuit.

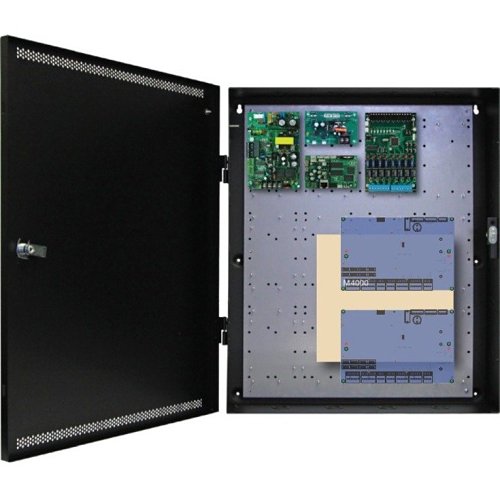

The rugged ACLASS enclosures, crafted from painted steel, come with a removable backplate, lock, dual key set, and a tamper switch for enhanced security.
**Key System Features:**
**FPO Offline Power Supply:**
– Compatible with 120 or 230 VAC input
– Delivers 12 and 24 VDC outputs
– Incorporates an on-board Fire Alarm Interface
– Offers continuous and resettable DC outputs
**Distributed Outputs:**
– Includes eight managed outputs, each fused at 3A
**Expansion Options:**
– Capacity for increased power and multiple voltages
– Additional distribution outputs
– Network monitoring and reporting capabilities
**Lifetime Warranty**
**Enclosure Features:**
**Efficient Installation Design:**
– Pre-wired power section
– Pre-punched knockouts
– Removable backplate for simplified installation
– Pre-defined hole pattern for power section
– Compatible access panels mount on threaded studs, eliminating the need for drilling
**Additional Benefits:**
– Ample wire management space
– Provides a 6.5″ enclosure depth to accommodate battery sets
– Standard features include a tamper switch, lock, and dual key set
– Includes mounting hardware for access control boards
