Description
These advanced ProWire Unified Power wall mount units are designed for single and dual voltage access control applications, expertly wired for MERCURY controllers. ProWire facilitates the specification and installation of standardized access control power solutions across an organization, ensuring consistent operation, maintenance, and servicing.
The C8 or M8 control modules feature sixteen (16) access control inputs, which accommodate either voltage or dry contact activation. They also provide sixteen (16) programmable outputs for either failsafe or fail-secure operation at 12 or 24 VDC, with management via the power supply fire alarm interface. The D8 modules include sixteen (16) auxiliary outputs, and in dual voltage structures, each output is configurable for 12 or 24 VDC operation.

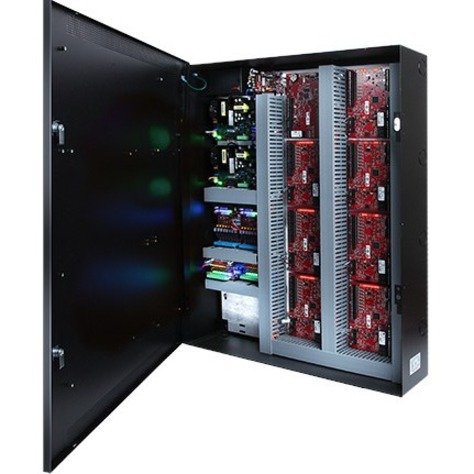

ProWire Unified Power enclosures are constructed from painted steel, equipped with a removable backplate, locking mechanisms, keys, and tamper switch, and are 100% factory tested, prepared for final panel installation and field wire termination.
