Description
The Unified Power Systems integrate FlexPower® power solutions with 734/734N Wiegand Interface Modules to deliver a compact and secure UL Listed turnkey access control solution.
This access power unit provides 75W output at either 12V or 24V DC, catering to single voltage requirements.
The C4 lock control module offers four access control inputs, supporting voltage or dry contact activation, and four programmable fused outputs for selecting failsafe or failsecure operations at 12 or 24 VDC. These are governed by the integrated fire alarm interface circuit on the FPO.

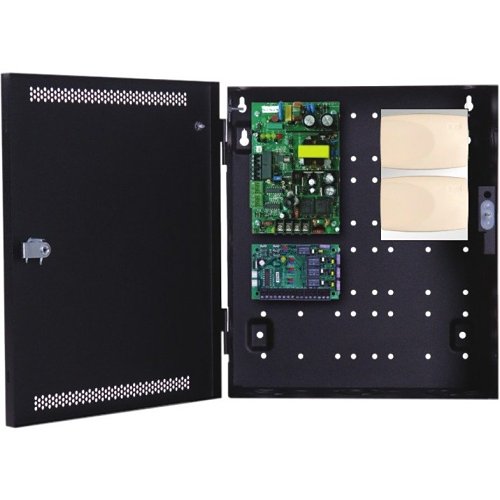

Access system enclosures feature robust painted steel construction with a removable backplate for modules, complete with a lock, two keys, and a tamper switch.
System Features
FPO Power Supply Features
– 120 or 230 VAC input
– 12 and 24 VDC outputs
– Integrated Fire Alarm Interface
– Continuous and resettable DC outputs
Distributed Outputs
– Four fused lock controls at 3A each
Expansion Capabilities
– Enhanced power capacity with multiple voltage options
– Additional distribution points
– Network monitoring and reporting functions
Lifetime Warranty
Enclosure Design Features
Efficiency-Oriented Design
– Pre-wired power section
– Pre-punched knockouts for easy installation
– Pre-installed brackets for module placement
– Flexible options for backplate mounting
– Access panels affix to threaded studs without drilling
Additional Advantages
– Ample wire management space
– 4.5″ enclosure depth accommodates battery sets
– Standard features: tamper switch, lock, dual key set
– Includes mounting hardware for access boards
