Description

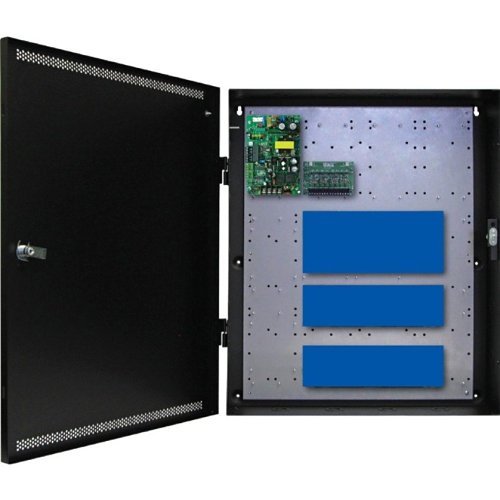

The BCLASS™ Unified Power Solutions are expertly designed to integrate FlexPower® power modules and Brivo™ access control hardware into a single, compact, and secure installation.
The FPO Power Supply/Battery Charger offers dual power outputs, allowing users to select either 12 or 24 VDC. It supplies continuous power for system operation, and features a resettable power output that activates upon fire alarm disconnect.
For access and locking device power, the D8P module delivers eight Class 2 power-limited outputs, each rated at 2.5A. These outputs are individually programmable for constant power or integration with the Fire Alarm Interface (FAI) disconnect feature.
BCLASS enclosures are crafted from painted steel, feature a removable backplate, and come equipped with a lock, two keys, and a tamper switch.
System Features
FPO Offline Power Supply
– Accepts 120 or 230 VAC input
– Provides 12 and 24 VDC outputs
– Built-in Fire Alarm Interface
– Offers continuous and resettable DC options
Distributed Outputs
– Eight auxiliary outputs, power-limited to 2.5A each
Expansion Options
– Increased power capacity with multiple voltage options
– Additional distribution outputs available
– Network monitoring and reporting capabilities
Lifetime Warranty
Enclosure Features
Labor-Saving Design
– Pre-wired power section for ease of installation
– Pre-punched knockouts and removable backplate simplify setup
– Predefined hole patterns for power section integration
– Access panels easily mount on threaded studs without the need for drilling
Additional Benefits
– Ample wire management space
– 4.5″ enclosure depth accommodates battery installations
– Standard tamper switch, lock, and dual key set
– Includes mounting hardware for access board integration
