Description

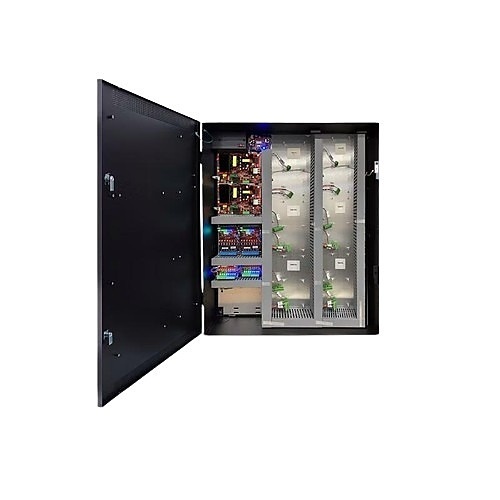

The HCLASS unified power systems are expertly designed to incorporate FlexPower® modules alongside HW Pro-Watch™ access control hardware within a compact and secure configuration. The FPO Power Supply/Battery Charger delivers dual power outputs that can be user-configured for either 12 or 24 VDC. One output ensures a continuous power supply for system operations, while the other offers a resettable power output that activates upon the initiation of the fire alarm disconnect. For access control and locking power requirements, the D8P module delivers eight Class 2 power-limited outputs, each rated at 2.5A and capable of individual programming for constant output or FAI disconnect. The HCLASS enclosures, crafted from painted steel, feature a removable backplate and come equipped with secure locks, two keys, and a tamper switch.
System Features
FPO Offline Power Supply
– 120 or 230 VAC input
– 12 and 24 VDC outputs
– Integrated Fire Alarm Interface
– Continuous and resettable DC outputs
Distributed Outputs
– Eight auxiliary, power-limited outputs, each at 2.5A
Expansion Options
– Increased power capacity with multiple voltage options
– Additional distribution outputs
– Network monitoring and reporting capabilities
Lifetime Warranty
Enclosure Features
Labor-Saving Design
– Pre-wired power section
– Pre-punched knockouts
– Simplified installation with a removable backplate
– Pre-defined hole pattern for power section
– Easy access panel mounting on threaded studs, no drilling required
Additional Benefits
– Ample wire management space
– 4.5″ enclosure depth accommodates battery set
– Standard tamper switch, lock, and dual key set
– Includes mounting hardware for access boards
