Description

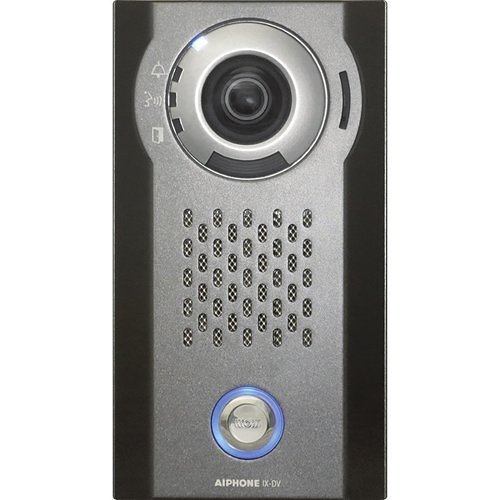

The IX-DV (surface mount) and IX-DVF (flush mount) are robust, IP video door stations designed for weather resistance. They connect seamlessly to a network through Cat-5e/6 cabling and adhere to SIP compliance standards. These units feature a 1.23-megapixel fixed color camera with a lever for vertical angle adjustment. Video streaming is enabled for third-party devices using ONVIF Profile S or RTSP protocols. Audio and video recording are supported via a microSD™ card. The IX-DV and IX-DVF can be configured to connect with up to two different stations and offer three distinct call level options. With a 6Ω output, these stations facilitate efficient paging and communication. Two programmable contact outputs can be activated during door release, use of the 6Ω output, or based on station status. Additionally, six inputs allow for initiating or answering calls/pages. Custom sound files can be uploaded for specific functions like door release, call initiation, communication start, or error notifications. The stations provide both auditory and visual indicators for calling, communication, and door release activities.
