Description
The RY-3DL offers selective door release functionality and is compatible with the KB-3MRD Video Sentry Color Tilt system, the JP-4MED Hands-Free Color Video intercom, and the IE-2AD Chime Tone communication system.

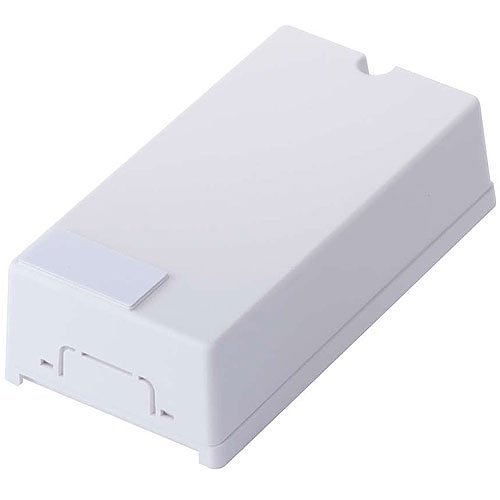

Aiphone RY-3DL Selective Door Release Adapter
in stock
In Stock
$111.14
- Equipped with selective door release functionality, featuring both normally open (N/O) and normally closed (N/C) output contacts for individualized access control.
- Engineered to be compatible with JP and KB systems.
- Offers dual configuration with normally open and normally closed contact outputs.
- Relay Input Specifications: 12-18V DC power range, utilizing red and gray 22AWG wires.
- Normally Open Output Rating: Capable of handling 1A at 3V DC or 5V AC for efficient power management.
- Normally Closed Output Rating: Supports 1A at 3V DC or 5V AC for reliable operation.
- Wiring Configuration: Requires 4 conductors connecting the Master Station to RY-3DL, 2 conductors from power supply to RY-3DL, and 2 conductors from RY-3DL to release mechanism, with series-wired power integration.
- Physical Dimensions: Measures at 5-1/2" height x 3" width x 1-1/2" depth for compact installation.
SKU:
RY-3DL
Categories: Communications, Intercom & Entry Accessories, Intercoms & Telephone Entry
Brand: Aiphone
| Certifications | |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Aiphone |
| Manufacturer | Aiphone Co., Ltd |
| Manufacturer Part Number | RY3DL |
| Product Model | RY-3DL |
| Product Name | RY-3DL Door Release Adaptor |
| Product Type | Door Release Adapter |
| Miscellaneous | |
| Additional Information | Door release contacts release the door where communication is establishedBoth normally open and normally closed contactsWall Mountable |
| Compatibility | Aiphone:MY-2CD Black & White, PanTilt Video SentryKB-3MRD Color Tilt Video SentryIE-2AD Audio-Only System |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Color | Gray, Red |
| Depth | 1.5" |
| Form Factor | Surface Mount, Wall Mount |
| Height | 5.5" |
| Width | 3" |
| Technical Information | |
| Connectivity Technology | Wired |
