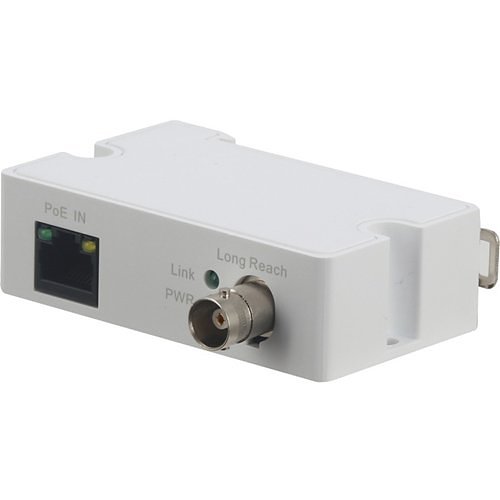

The device is available in two components: a transmitter (LR1002-1ET) and a receiver (LR1002-1EC). It functions as a converter, facilitating the transition from RJ45 to BNC connections, thereby enabling long-distance power supply transmission over coaxial cabling. The product features a BNC coaxial port and an RJ45 port. It supports two transmission modes, 100Mbps and 10Mbps, which can be adjusted based on the required transmission distance.
| General Information | |
| Brand Name | Dahua |
| Manufacturer | Zhejiang Dahua Technology Co., Ltd. |
| Manufacturer Part Number | LR1002-1EC |
| Product Model | LR1002-1EC |
| Product Name | Single-Port Long Reach Ethernet over Coax Extender |
| Product Type | Network Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 2" |
| Height | 0.9" |
| Width | 3.1" |
| Technical Information | |
| Maximum Data Transfer Rate | 12.50 Mbit/s |
| Maximum Extended Range | 3280.84' |
| Warranty | |
| Limited Warranty | 3 Year |
