Description
Exceptional Power and Bandwidth for IP Cameras at Unmatched Distances
LONGSPAN revolutionizes IP camera connectivity by delivering exceptional power and bandwidth over extensive lengths of standard Cat 5e or Cat 6 network cable. This innovative point-to-point solution self-optimizes for peak performance without any manual configuration, guaranteeing robust connections to remote network devices.
Providing unrestricted 100Base-TX Ethernet over an impressive 820 meters, LONGSPAN’s POE models supply full-power 802.3at POE Plus up to 600 meters, ensuring dependable performance in demanding environments.

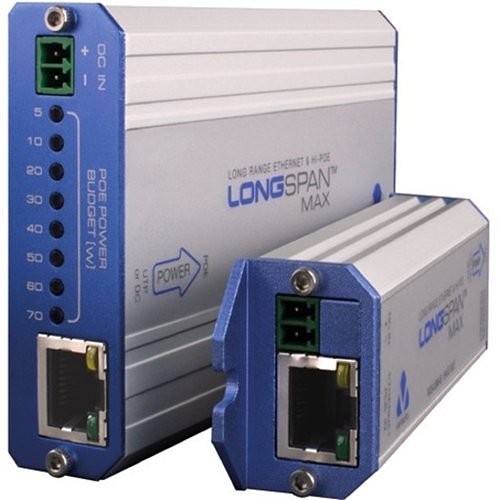

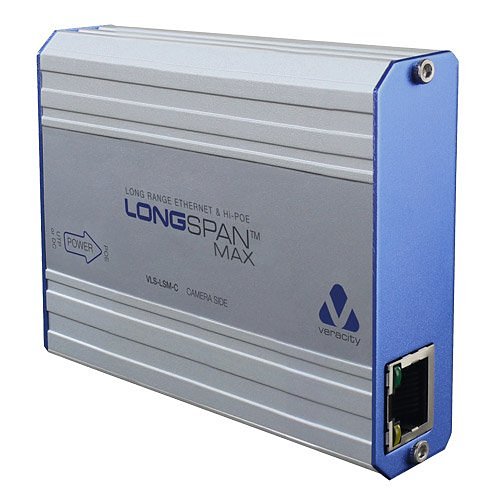

Offered in both POE and data-only configurations, LONGSPAN includes high-power Max single and Quad versions for enhanced base and camera support. Check the documentation for detailed information on LONGSPAN Base 8, LONGSPAN Max, and LONGSPAN Max Quad models.
With IP cameras often needing peak bandwidth for critical scenes, LONGSPAN supports the necessary 200Mbps bandwidth over Cat 6 (up to 820 meters) or Cat 5e (up to 690 meters). For extreme distances, it can seamlessly adapt to a 10Base-T connection, extending range beyond 1000 meters—surpassing traditional Ethernet limits.
Equipped with POE, LONGSPAN can be powered via IEEE 802.3af, 802.3at POE Plus, or 802.3bt High Power POE sources, or through versatile power supply options tailored for maximum efficiency. Achieving up to 25 watts for POE Plus devices at 600 meters with appropriate power supplies, LONGSPAN Max High Power devices now deliver up to 90W.
For businesses transitioning from legacy analog systems, LONGSPAN enables straightforward upgrades to IP while retaining existing UTP infrastructure. It automatically adjusts to single-pair cables, providing consistent 10 or 100Base-TX connections over distances up to 820 meters for reliable IP video performance.
LONGSPAN’s compact, expandable mounting system supports up to 24 channels within 1U rack space, with optional rear-mount power supplies. Smart diagnostic LEDs, including the SAFEVIEW® display on POE models, instantly indicate power availability, remote link status, and other diagnostic data for speedy, secure installation.
