Description

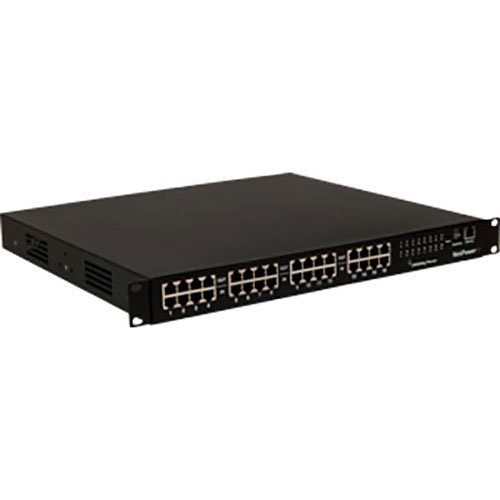

NETPOWER remote managed midspan injectors deliver power and transmit data to Power over Ethernet (PoE) compliant devices, including IP cameras, door locks, infrared illuminators, and various access control edge devices.
**Specifications**
– **Port Count**: Options for 8 or 16 ports
– **Power over Ethernet**: Provides up to 32W per port, compliant with IEEE 802.3at standards, supporting up to 256W aggregate power distribution
– **Data Throughput**: Supports data rates of 10/100/1000 Mbps
– **Input Power Requirements**:
– AC Input: 100-240Vac, maximum input current of 4.5A, frequency range 47 to 63 Hz
– DC Input: 50 Vdc ±10%, maximum input current of 7A
– Backup Battery: 48Vdc nominal voltage
– **Management**: Integrated PowerCom-PoE web-based interface
– **Port Status Indicators**: Green for normal operation, yellow indicates a fault
– **Mechanical Design**: Measures 19.0 in. x 15.50 in. x 1.75 in. (438 mm x 394 mm x 44 mm), 1U rack-mounted, suitable for standard EIA 19″ racks
– **Weight**: 14 lbs. (7 kg)
**Environmental Conditions**
– **Operating Temperature**: -4° to 122°F (-20° to 50°C)
– **Extended Temperature Range**: 124° to 158°F (51 to 70°C) with derated power
– **Operating Humidity**: 10% to 90% non-condensing
– **Storage Temperature**: -4° to 158°F (-20° to 70°C)
– **Storage Humidity**: 5% to 95% non-condensing
– **Operating Altitude**: -1000 to 10,000 ft. (-304.8 to 3048 m)
**General Specifications**
– **BTU Rating**: 116 BTU/Hr
– **Regulatory Compliance**: RoHS compliant
– **Electromagnetic Emission & Immunity**: Complies with FCC part 15, Class A, EN 55022 Class A (emissions), EN 55024 (immunity)
– **Safety Approvals**: Certified to meet UL 60950-1, CSA C22.2 No. 60950-1, CE standards
– **Warranty**: 10-year coverage
