Brand: Pelco by Motorola Solutions

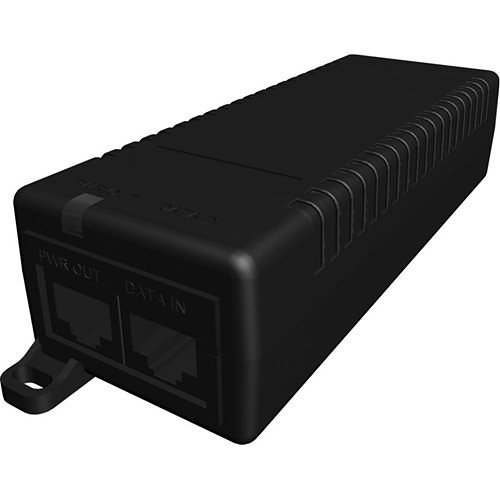

Pelco POE130-ATUS Single-Port PoE+ Midspan with US Power Cord

Name: Pelco POE130-ATUS Single-Port PoE+ Midspan with US Power Cord
Brand: Pelco by Motorola Solutions
SKU: POE130-ATUS
Availability: InStock

in stock

Special Order

$112.03

Comprehensive IEEE 802.3at Compliance
Compatible with IEEE 802.3af Legacy Systems
Ensured 30 W Power Output
Accommodates 10/100/1000Base-T Network Speeds
Secure: Optimized for Low Power Devices with Precise Power Delivery
Automatic Identification and Safeguarding of Non-Standard Ethernet Devices
Compact and Space-Efficient Design

SKU: POE130-ATUS Categories: Data Comm & Networking, PoE Devices, PoE Injectors Brand: Pelco by Motorola Solutions

Description

The POE130-AT Power over Ethernet (PoE) single-port midspan is engineered to fulfill the rigorous data rate and power demands of IP cameras with superior video streaming capabilities. This PoE+ single-port midspan provides a total output power of 30 W and complies with the IEEE802.3at standard for detection, connection, disconnection, and fault protection.

The device operates within an input voltage range of 90 to 264 VAC, with a maximum input current of 1 A (RMS) at 100-240 VAC.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Pelco by Motorola Solutions
Manufacturer	Motorola Solutions, Inc.
Manufacturer Part Number	POE130-ATUS
Product Model	POE130-ATUS
Product Name	POE130-AT Single-Port IEEE802.3at Midspan
Product Type	PoE Injector

Interfaces/Ports
Input Ports	1 x 10/100/1000Base-T
Output Ports	PoE+

Miscellaneous
Compatibility	Pelco EH20 Series Enclosure
Package Contents	POE130-AT Single-Port IEEE802.3at Midspan US Power Cord

Physical Characteristics
Depth	1.8"
Height	1.3"
Weight (Approximate)	1 lb
Width	5.4"

Power Description
Input Voltage	120V AC, 230V AC
Maximum Frequency	60 Hz
Maximum Output Power	30W
Maximum Output Voltage	55 V DC
Minimum Frequency	50 Hz
Minimum Frequency (Hz)	50

Product Information
Protection Type	Overload Protection, Short Circuit
