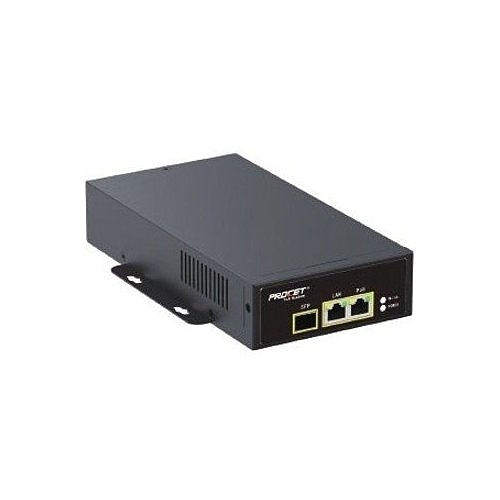

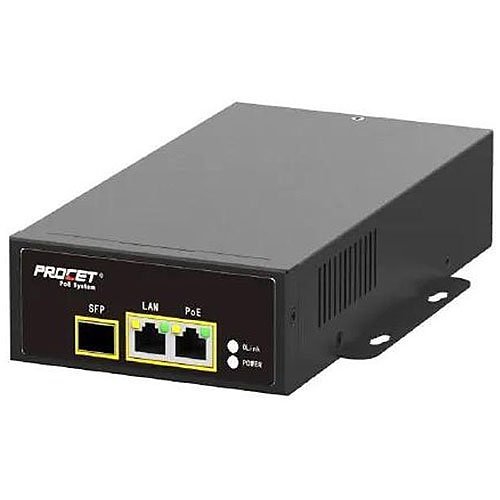

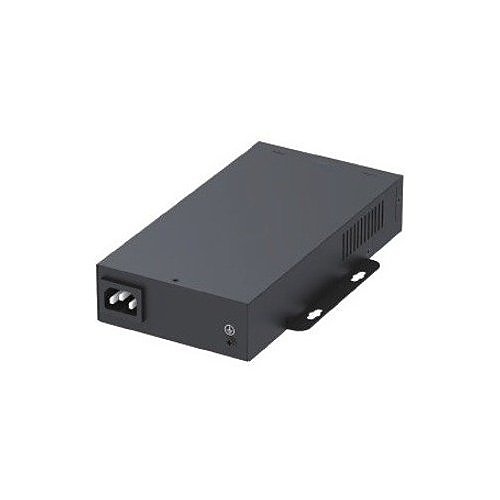

Hanwha SPO-8315 83W HPoE/PoE++ Injector with Built-in SFP Slot, Black

Name: Hanwha SPO-8315 83W HPoE/PoE++ Injector with Built-in SFP Slot, Black
Brand: Hanwha Vision
SKU: SPO-8315
Availability: InStock

in stock

In Stock

$239.71

83W / 1.5A High Power over Ethernet (HPoE) injector
Integrated SFP port for enhanced connectivity
Power input of 100-240V AC at 2.0A, 50/60Hz
Output rated at 55Vdc, 1500mA
Power distribution through pins 4/5( ), 7/8(-) and 3/6( ), 1/2(-)
Compatible with 10/100/1000BASE-T RJ45 interfaces and 1000BASE-X SFP interfaces for optimal data speed
Wall-mountable design for flexible installation
IP20 protection rating
Compliant with NDAA standards

SKU: SPO-8315 Categories: Data Comm & Networking, PoE Devices, PoE Injectors Brand: Hanwha Vision

Description

The SPO-8315 Power over Ethernet injector delivers efficient power transmission through data-carrying Ethernet cables. It complies with IEEE802.3BT, IEEE802.3AT, and IEEE802.3AF standards, ensuring seamless integration with existing Ethernet switches and network devices. The injector supports up to 83W HPoE/PoE and includes a built-in SFP slot. It is compatible with devices such as XNP-9300RW, XNP-8300RW, XNP-6400RW, PNM-9085RQZ, PNM-9084RQZ, and PNM-9322VQP, catering to diverse network requirements.

Certifications
NDAA Compliant	Yes

Environmental Conditions
Operating Relative Humidity (H-H)	20%-90%, Non-Condensation
Operating Temperature (T-T)	-40°F-149°F
Storage Temperature (T-T)	-40°F-185°F

General Information
Brand Name	Hanwha Vision
Led Indicators	LAN, Load Active, PoE, Power, SFP Fiber
Manufacturer	Hanwha Vision
Manufacturer Part Number	SPO-8315
Product Model	SPO-8315
Product Name	83W PoE Injector
Product Type	PoE Injector

Interfaces/Ports
Input Ports	10/100/1000Base-T, SFP

Media & Performance
Network Technology	10/100/1000Base-T

Miscellaneous
Compatibility	Hanwha Techwin PTZ Network Cameras: XNP-6400RW XNP-8300RW XNP-9300RW PNM-9085RQZ PNM-9084RQZ PNM-9085RQZ PNM-9084RQZ PNM-9320VQP PNM-9321VQP PNM-9322VQP
Environmental Certification	cUL, RoHS, WEEE
Environmentally Friendly	Yes

Physical Characteristics
Color	Black
Depth	5.3"
Form Factor	Wall Mount
Height	1.6"
Weight (Approximate)	2.43 lb
Width	8.4"

Power Description
Input Voltage	100-240V AC
Maximum Input Current	2.0A
Maximum Output Current	1.50 A
Maximum Output Power	83W
Maximum Output Voltage	55 V DC

Product Information
Mount Type	Wall Mount
Protection Type	Surge Protection

Warranty
Limited Warranty	3 Year
