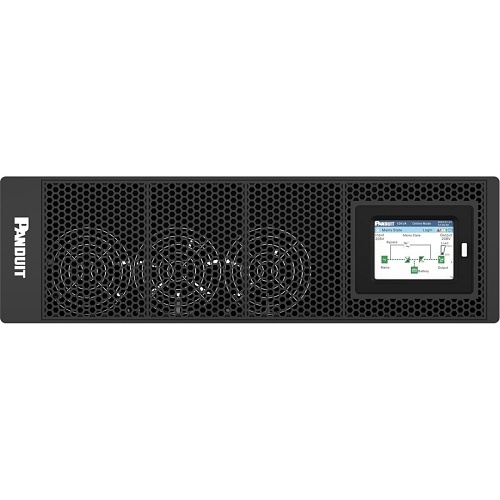

Panduit U05N11V SmartZone UPS, 5kVA, VRLA, 208V, NC, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card and Rail Kit

Name: Panduit U05N11V SmartZone UPS, 5kVA, VRLA, 208V, NC, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card and Rail Kit
Brand: Panduit
SKU: U05N11V
Availability: InStock

in stock

Special Order

$6,112.19

Rack/Tower Convertible Design: Supports both rack and tower configurations, featuring a rotatable and vibrant touchscreen LCD interface.
Online Double Conversion Technology: Delivers consistent and clean power with reduced ripple, utilizing noise filtering, automatic voltage regulation (AVR), and surge protection for enhanced power stability (EMEA unit only).
Extensive Input Voltage Range: Accommodates voltages from 110-280V AC, suitable for environments with significant power grid fluctuations.
Superior Energy Efficiency: Achieves up to 98% efficiency, minimizing energy waste and reducing electricity costs.
Cost-Saving Energy Solutions: Implements Smart ECO mode for increased efficiency in Online Double Conversion models.
Eco-Friendly Design: Complies with RoHS, Reach, CE, UL, and ENERGY STAR® 2.0 standards for North American units, affirming a commitment to green practices.
Output Unity Power Factor: Provides increased active power capacity to support IT equipment loads effectively.
Enhanced Input Power Factor: Utilizes power factor correction topology to significantly lower total harmonic distortion (THD).

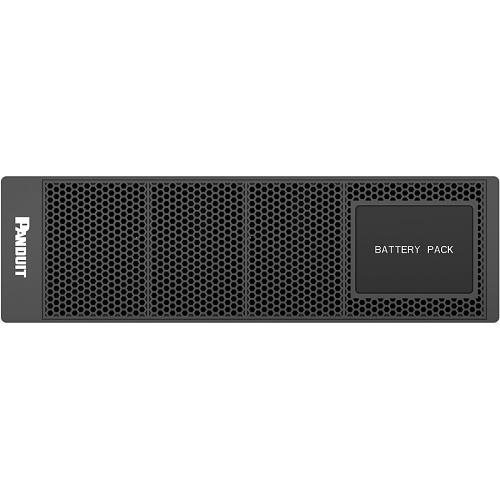

Scalable Battery Packs: Supports up to five external battery packs, extending uninterruptible power supply (UPS) backup duration.
Advanced Battery Management: Features a three-stage charging method with temperature compensation and sophisticated algorithms to extend battery lifespan.

SKU: U05N11V Categories: Data Comm & Networking, Power Products, UPS Brand: Panduit

Description

The Panduit® SmartZone™ Uninterruptible Power Supply (UPS) featuring a maintenance-free VRLA battery, available in 5-10kVA single-phase 208 V and 230 V models, is an advanced Online Double Conversion system. This UPS offers highly efficient and dependable power protection and backup for your IT equipment. It boasts superior electrical performance, advanced intelligent monitoring, and enhanced network capabilities. Adhering to ENERGY STAR® 2.0, EMC, and safety standards, it is designed to meet the ever-increasing power requirements of Data Center, Enterprise, and Edge IT Infrastructure.

Battery Information
Battery Capacity	9Ah
Battery Characteristics	Valve-regulated, Maintenance-free, Hot-swappable
Battery Chemistry	Sealed Lead Acid (VRLA)
Battery Life	5 Year
DC System Voltage	240 V DC
Replaceable Battery	Yes
Typical Battery Recharge Time	6-Hour

Certifications
Energy Star	Yes

Controls/Indicators
Status Indicators	Colorful LCD with four buttons and LED indicators

Environmental Conditions
Maximum Operating Elevation	9842.52 ft
Maximum Operating Temperature	104°F (40°C)
Sound Emission	55 dB
Thermal Dissipation	312.71 W

General Information
Brand Name	Panduit
Manufacturer	PANDUIT CORP
Manufacturer Part Number	U05N11V
Product Line	SmartZone
Product Model	U05N11V
Product Name	SmartZone U05N11V 5000VA Rack/Tower UPS
Product Type	Double Conversion Online UPS

Interfaces/Ports
EPO Port	Yes
Network (RJ-45)	Yes
Serial Port	Yes

Miscellaneous
Environmentally Friendly	Yes
Package Contents	SmartZone U05N11V 5000VA Rack/Tower UPS Intelligent Network Management Card

Physical Characteristics
Application/Usage	Computer, Data Center, Edge Computing, IT Equipment
Color	Green
Depth	26.2"
Form Factor	Rack, Rail Mount, Tower
Height	5.2"
Rack Height	2U
Weight (Approximate)	187.39 lb
Width	17.3"

Power Description
Input Frequency	70 Hz
Input Voltage	120V AC, 230V AC
Input Voltage Range	110 V AC - 285 V AC, 185 V AC - 264 V AC
Output Frequency	60 Hz
Plug/Connector Type	NEMA L6-30R
Surge Energy Rating	600 J
Waveform Type	Pure Sine Wave

Software
Software Included	SmartZone Cloud Ready

Technical Information
AVR	Yes
Battery Size	12V
Dataline Protection	RJ-45
Hot Swappable	Yes
Number of Batteries	20
Output Voltage	208V AC, 240V AC
Overload Protection	Yes
Phase	Single Phase
Receptacle Detail	4 x NEMA L6-30R
Receptacle Type	NEMA L6-30R
USB (HID Compliant) Port	Yes

Warranty
Additional Warranty Information	3 Years for UPS & EBP 2 Years for Battery
Limited Warranty	3 Year
