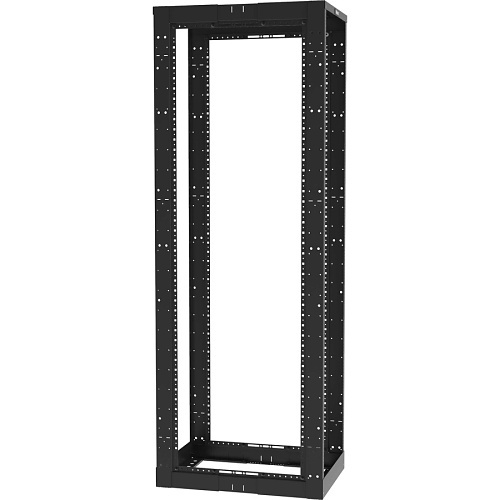

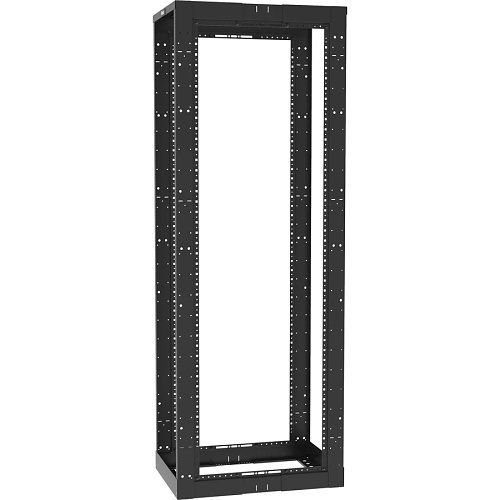

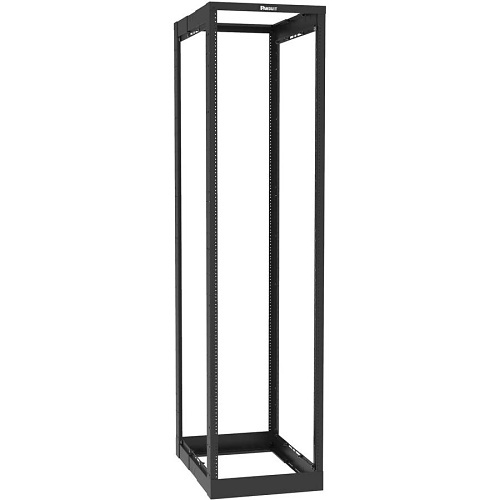

Panduit AR4P 45RU 4-Post Rack, Adjustable

Name: Panduit AR4P 45RU 4-Post Rack, Adjustable
Brand: Panduit
SKU: AR4P
Availability: InStock

in stock

Special Order

$2,000.57

Adjustable Depth The rack accommodates equipment mounting depths from 23" to 42" in 0.5" increments, offering enhanced flexibility with a single SKU.
Welded Steel Construction With a UL listing and a load capacity of 2000 lbs, this construction ensures superior stability.
Self-Squaring The front-to-back braces installed on two axes help maintain the rack's squareness during assembly.
Compact Footprint The inward-facing feet reduce the overall front-to-back size, optimizing alignment with floor tiles.
Color Options Available in both Black and White finishes to suit various environments.
Numerical Rack Unit Identification The numbered rack units, from bottom to top, facilitate quick location and installation of mounted devices.
Fully Bonded Structure Paint piercing hardware provides electrical bonding upon assembly, eliminating the need for extra bonding parts.
PEM Stud and Carriage Bolt Construction This design eliminates the need for a second wrench, streamlining the assembly process.
Versatile Accessory Mounting Options Accessories like PDU brackets, vertical tie-off brackets, and waterfalls can be mounted on posts or front-to-back braces for maximum application versatility.
Integrated Grounding Locations Equipped with eight masked grounding points, ensuring optimal lug connection placement.

SKU: AR4P Categories: Data Comm & Networking, Rack Cabinets & Frames, Racks & Enclosures Brand: Panduit

Description

The Adjustable Depth 4-Post Rack is designed to accommodate equipment mounting depths ranging from 23″ to 42″ in 0.5″ increments, offering enhanced flexibility with a single product SKU. This rack’s front and rear structural posts are versatile for mounting all PanduitTM Vertical Cable Managers and a variety of accessories like power distribution unit brackets, waterfalls, and vertical tie-off panels. The rack features #12-24 threaded rails and stands at a height of 45RU, finished in a sleek black color.

General Information
Brand Name	Panduit
Manufacturer	PANDUIT CORP
Manufacturer Part Number	AR4P
Product Name	Four Post Rack
Product Type	Rack Frame

Miscellaneous
Assembly Required	Yes
Features	Adjustable Depth, Adjustable Mounting Posts, Cable Management
Package Contents	Four Post Rack Adjustable Depth Mount Brackets Hardware Kit

Physical Characteristics
Application/Usage	Data Center, Networking, PDU, Telecommunication
Color	Black, White
Color Family	Black
Depth	42"
Height	84.1"
Product Color	Black Powder Coat
Product Material	Steel
Rack Height	45U
Rack Width	19"
Static/Stationary Weight Capacity	2000.03 lb
Width	20.3"

Technical Information
Rack Post Quantity	4
Rack Type	Open Frame

Warranty
Limited Warranty	1 Year
