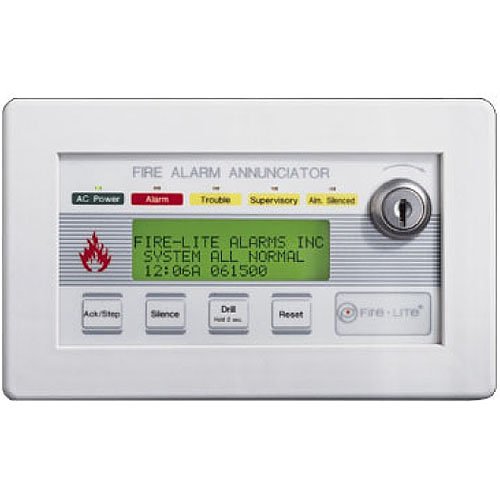

Fire-Lite LCD-80F 80-Character Backlit LCD Remote Fire Annunciator for MS9200UD Series and MS-9600 Series

Name: Fire-Lite LCD-80F 80-Character Backlit LCD Remote Fire Annunciator for MS9200UD Series and MS-9600 Series
Brand: Fire-Lite Alarms by Honeywell
SKU: LCD-80F
Availability: InStock

in stock

AT | CH | CS | DL | DV | FF | GR | HI | LD | MN | NE | NO | PB | R3 | RC | RN | SL | SO | VA | VB | In Stock

$724.79

Backlight deactivates during AC power loss to preserve battery life but will re-engage upon an alarm event
Can be positioned up to 6,000 feet (1,800 meters) from the control panel
Features plug-in terminal blocks for simplified installation and maintenance
Includes an enable key for Drill and Reset functions
Equipped with system status LEDs for Power, Alarm, Trouble, Supervisory, and Alarm Silence indicators
No programming required — seamlessly connects to the terminal port (TB7)
Shows device type identifiers, individual point alarms, trouble or supervisory conditions, zone, and customizable alpha labels
Displays a time-and-date field
Designed with aesthetic appeal

SKU: LCD-80F Categories: Annunciators, Fire, Fire Control Panels Brand: Fire-Lite Alarms by Honeywell

Description

The LCD-80F is a space-efficient and budget-friendly 80-character backlit LCD remote fire annunciator designed for use with Fire•Lite MS9200UD Series and MS-9600 Series Fire Alarm Control Panels (FACPs). It provides comprehensive system point status information and features control switches for remote management of vital system functions. You can connect up to 32 LCD-80F units to the EIA-485 terminal port of each FACP. The LCD-80F does not require any programming, simplifying the commissioning process and saving time.

General Information
Brand Name	Fire-Lite Alarms by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	LCD-80F
Product Model	LCD-80F
Product Name	LCD-80F Annunciator Module
Product Series	MS
Product Type	Annunciator Module

Miscellaneous
Compatibility	FireLite Fire Alarm Control Panels (FACPs): MS-9200UD Series MS-9600 Series
Features	80-character backlit LCD, Can be remotely located up to 6,000 ft (1828.8 m) from the FACP, Control switches for system acknowledge, signal silence, drill, and reset with enable key, Displays device type identifiers, individual point alarm, trouble or supervisory, zone, and custom alpha labels, May be powered from the host FACP or by remote power supply (requires 24V DC), Mimics all display information from the host panel, Plug-in terminal blocks for ease of installation and service, System status LEDs for power, alarm, trouble, supervisory, and alarm silenced, Time and date display field, Up to 32 annunciators per FACP

Physical Characteristics
Color	White
Depth	2.2"
Height	4"
Width	5.8"

Power Description
Input Voltage	24V DC

Technical Information
Device Supported	Control Panel
