Brand: Fire-Lite Alarms by Honeywell

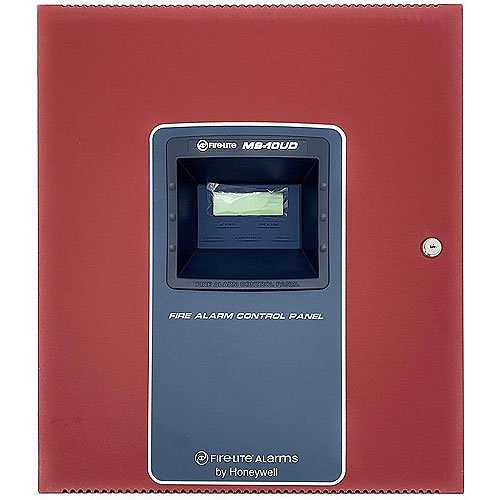

Fire-Lite MS-10UD-7 10-Zone, 24V Fire Alarm Control Panel with Backbox and FLPS-7 Power Supply

Name: Fire-Lite MS-10UD-7 10-Zone, 24V Fire Alarm Control Panel with Backbox and FLPS-7 Power Supply
Brand: Fire-Lite Alarms by Honeywell
SKU: MS-10UD-7
Availability: InStock

in stock

AB | AK | AL | AS | AT | AU | AX | BE | BF | BH | BK | BN | BR | BT | BU | BV | CB | CD | CH | CI | CS | CT | DA | DC | DL | DN | DV | EF | EG | FC | FF | FM | FN | FR | FW | GD | GR | HA | HI | HK | HO | HU | ID | IS | JK | KX | LB | LD | LE | LS | LT | LU | LV | MA | MB | MC | ML | MN | MO | MS | ND | NE | NH | NO | NS | NV | OH | OK | OL | OR | OZ | PB | PC | PD | PL | PN | PO | PX | R3 | RC | RD | RM | RN | RS | SA | SC | SD | SE | SF | SK | SL | SM | SO | SP | SY | TS | TU | TV | VA | VB | WB | In Stock

$1,423.19

Configurable to Ten-zone Style B (Class B) or Five-zone Style D (Class A) using optional modules
Four NAC Circuits available in Style Y (Class B) or Style Z (Class A) with additional module options
Integrated NAC synchronization compatible with System Sensor, Wheelock, Gentex, Faraday, and Amseco devices
In-built programmer featuring an 80-character LCD display with backlighting and keypad
Annunciator bus supports up to 8 devices, including remote annunciators, serial or parallel printer gateways, relay boards, zone annunciators, and graphic annunciator LED driver boards
Embedded two-line digital communicator for remote site monitoring
Three programmable Form-C relays
Provides a total usable current of 7.0 amps

SKU: MS-10UD-7 Categories: Fire, Fire Alarm Control Panels, Fire Control Panels Brand: Fire-Lite Alarms by Honeywell

Description

The MS-10UD-7 is a 10-zone conventional fire alarm panel that incorporates advanced features typically associated with higher-end addressable systems. This panel is fully programmable through its integrated keypad and 80-character LCD display, eliminating the need for an external programmer. It includes a built-in Digital Alarm Communicator Transmitter (DACT) and offers compatibility with optional accessories such as remote annunciators, relay modules, LED driver modules, transmitter modules, and printer interface modules.

General Information
Brand Name	Fire-Lite Alarms by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	MS-10UD-7
Product Model	MS-10UD-7
Product Name	MS-10UD-7 Burglar Alarm Control/Communicator
Product Series	MS
Product Type	Fire Alarm Control/Communicator

Miscellaneous
Package Contents	MS-10UD-7 Burglar Alarm Control/CommunicatorFrame & Post Operating Instruction SheetTechnical ManualPower SupplyBackbox

Network & Communication
Sensor Connectivity	Wired

Physical Characteristics
Depth	0.72"\|5.25"
Height	19.26"\|19"
Width	16.82"\|16.65"

Power Description
Input Voltage	120 V AC

Technical Information
Connectivity Technology	Wired
Number of Relays Supported	3
Number of Standard Zones	10
Panel Control Type	Conventional
