$150.32

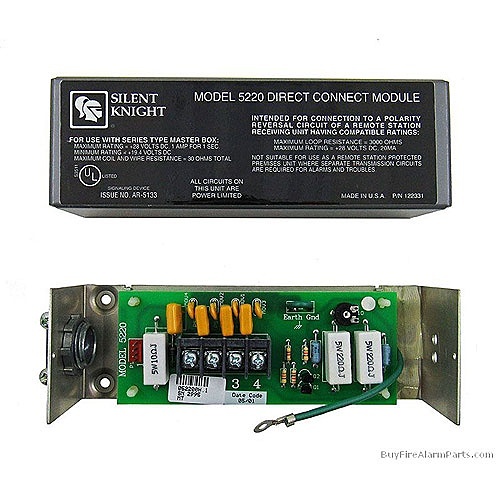

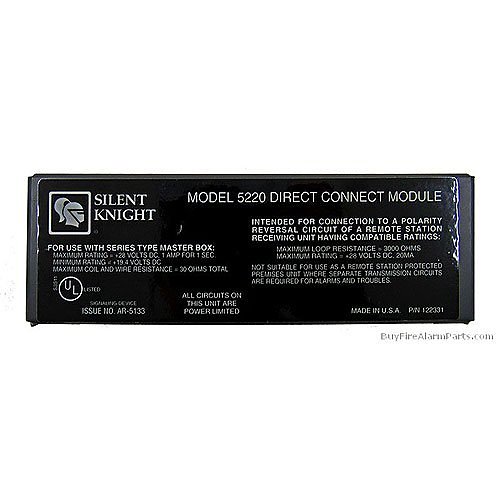

The 005220 direct-connect modules are designed to interface fire alarm control panels (FACPs) with city boxes or polarity reversal communicators. These modules include their own cabinet assembly and are suited specifically for indoor applications in dry environments.
| Environmental Conditions | |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| General Information | |
| Brand Name | Silent Knight by Honeywell |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 005220 |
| Product Model | 005220 |
| Product Name | 005220 Direct-Connect Module |
| Product Type | Direct Connect Module |
| Miscellaneous | |
| Additional Information | City Box Current : 1 A for 1 Second, max coil resistance 30 ohms Polarity Reversal: 20 mA max., max loop resistance 3 k ohms Terminal Wire Rating: 12 - 24 AWG |
| Physical Characteristics | |
| Depth | 2.1" |
| Height | 1.3" |
| Width | 6.5" |
| Power Description | |
| Input Voltage | 19.4V DC, 28V DC |
| Technical Information | |
| Device Supported | Fire Alarm Control Panel |
