Description

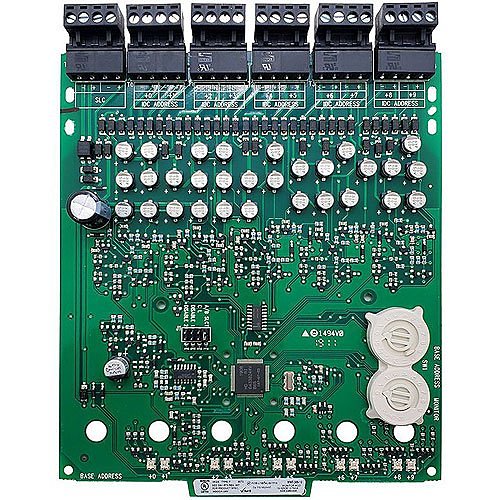

The MMF-300-10 Ten Input Monitor Module is designed for integration into sophisticated alarm systems. This monitor module acts as an interface between a control panel and normally open contact devices, like pull stations. All modules utilize a common SLC input, while the initiating device loops share a single supervisory supply and ground. However, each monitor operates independently. Each module features a distinct address for identification.
Address configuration for the first module is managed via a pair of rotary code switches, allowing settings from 01 to 150. Subsequently, the next nine modules are automatically assigned incremental addresses. The system also includes options to disable up to two unused modules, permitting those addresses to be reallocated. Additionally, each module is equipped with panel-controlled green LED indicators, which can be programmed to blink, latch on, or latch off as required.
