Brand: Fire-Lite Alarms by Honeywell

Fire-Lite MMF-302 Standard-Sized Addressable Monitor Module for 2-Wire, 24V, Smoke Detectors on Style (Class A) or Style (Class B) Circuit

Name: Fire-Lite MMF-302 Standard-Sized Addressable Monitor Module for 2-Wire, 24V, Smoke Detectors on Style (Class A) or Style (Class B) Circuit
Brand: Fire-Lite Alarms by Honeywell
SKU: MMF-302
Availability: InStock

in stock

AB | AS | AT | BF | BU | CD | CH | CI | DL | HF | IS | JK | LB | LU | ML | NE | NO | PL | PO | R3 | RS | SY | TS | VA | In Stock

$146.39

The MMF-300(A) is an industry-standard module designed to supervise either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.
The MMF-301(A) is a compact monitor module, measuring only 1.3 inches (3.302 cm), and is ideal for supervising a Style B (Class B) circuit of dry-contact input devices.

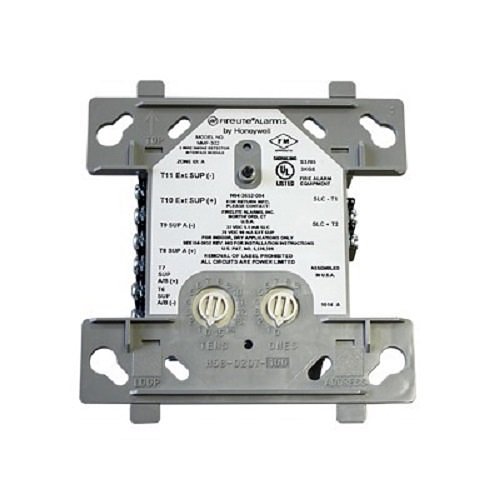

The MMF-302(A) is a standard-sized module utilized for monitoring and supervising compatible two-wire, 24-volt smoke detectors on circuits configured as Style D (Class A) or Style B (Class B).
The MDF-300(A) is a dual monitor module engineered to monitor and supervise two independent two-wire Style B (Class B) dry-contact initiating device circuits (IDCs) at two consecutive addresses.
These devices feature built-in type identification to automatically recognize them as monitor modules by the control panel.

SKU: MMF-302 Categories: Control Panel Modules, Fire, Fire Control Panels Brand: Fire-Lite Alarms by Honeywell

Description

Fire-Lite Alarms offers four monitor modules designed for integration with the MS-9050UD, MS-9200UDLS, and MS-9600 intelligent fire alarm control panels, catering to diverse fire safety applications. These modules are essential for supervising circuits of dry-contact input devices, including conventional heat detectors and pull stations, as well as for monitoring and powering circuits of two-wire smoke detectors.

General Information
Brand Name	Fire-Lite Alarms by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	MMF-302
Product Model	MMF-302
Product Name	MMF-302 Addressable Control Module
Product Series	MMF
Product Type	Addressable Monitor Module

Miscellaneous
Compatibility	Two Wire Smoke Detectors
Package Contents	MMF-302 Addressable Control ModuleInstallation InstructionsMounting Hardware

Physical Characteristics
Depth	1.3"
Height	4.5"
Width	4"

Technical Information
Device Supported	Addressable Two-wire System

Warranty
Limited Warranty	3 Year
