Description

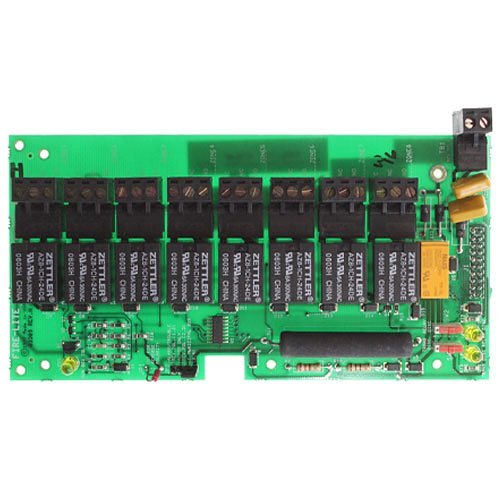

The RTM-8F Relay/Transmitter Module is designed to integrate into connector J6, mounting on the bottom right side of the MS-9200 main circuit board. To ensure module placement supervision, it’s essential to cut jumper JP4 upon installation. This module features eight high-current (5 amps) Form-C relays that correspond with software zones 1 through 8. Additionally, the RTM-8F supports Municipal Box or Remote Station transmitter functions. When paired with an MS-9200, the module complies with NFPA 72 standards for Auxiliary and Remote Station applications. For remote station scenarios, the RTM-8F can be set up to transmit either alarm-only signals or both alarm and trouble signals. The module also includes disable switches and status indicators for enhanced functionality.
