Description

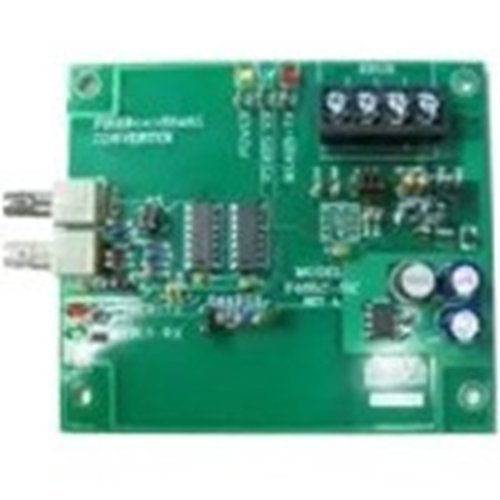

The SK-F485C converter facilitates efficient transition between panel SBUS connections and fiber optic communication systems.
INSTALLATION
Installation of the SK-F485C is straightforward, with the unit mountable via standoffs within the cabinet of a compatible fire alarm control panel (FACP). The option of using the 5815RMK remote mounting kit allows for the inclusion of up to two SK-F485C converters in a single enclosure.
COMPATIBILITY
The SK-F485C is designed to interface with Honeywell Silent Knight FACPs, including:
- 6820: Addressable fire alarm control panel
- 6820EVS: Addressable fire alarm control panel with emergency mass notification system functionality.
- 6808: Addressable fire alarm control panel
- 6700: Addressable fire alarm control panel
- 5700: Addressable fire alarm control panel
- 5808: Addressable fire alarm control panel
- 5820XL: Addressable fire alarm control panel
- 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system
- 5895XL: Intelligent Power Module
- 5496: Intelligent Power Module
FEATURES & BENEFITS
- Utilizes fiber connection with duplex ST connectors for transmission (Tx) and reception (Rx) data via 62.5 micron multimode fiber cables, supporting a data rate of 115.2K bits per second
- Handles maximum attenuation of 5.5db
- Supports fiber optic communication over distances up to 1.0 mile (1.6 Km) when using two-wire or terminal strip connections, with jumper selectable bias/termination
- Features automatic half duplex transmitter enable control for optimal operation at various baud rates/data bits
