Description

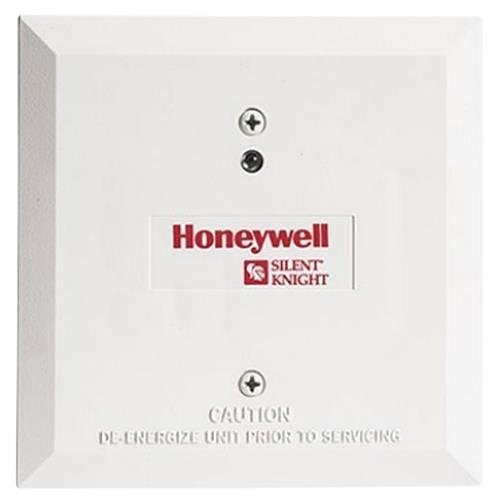

The SK-RELAY is an addressable relay module designed for integration with Honeywell Silent Knight Series fire alarm control panels (FACPs). This relay enables the fire alarm system to activate discrete contacts through coded commands, featuring two isolated sets of Form C contacts that function as a DPDT switch. Please note that supervision is not provided for the notification appliance circuit.
The SK-RELAY contacts are versatile, suitable for a wide range of normally open or normally closed applications. Each unit is programmed with a unique signaling line circuit (SLC) loop address, allowing it to be activated by the FACP during relevant events.
INSTALLATION
For installation, the SK-RELAY mounts directly into a standard 4″ square electrical box with a required minimum depth of 2-1/8″. A surface mount electrical box option, compatible with System Sensor® PN SMB500, is also available.
