Description

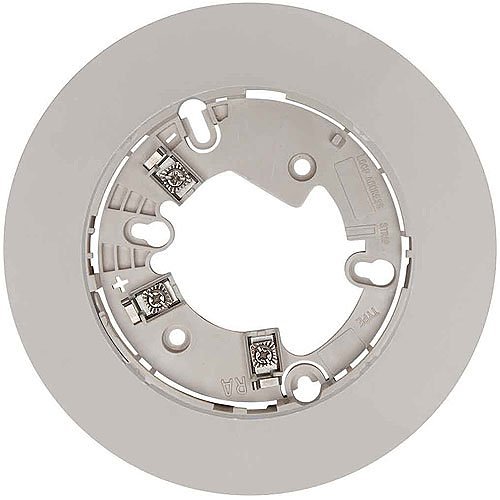

The B300-6-IV is an Ivory, 6-inch base, standard flanged, low-profile mounting platform.
Fire-Lite B300-6-IV 6″ Base, Standard Flanged Low-Profile Mounting Base, White
in stock
AT | BF | BV | CD | CH | DC | EG | FC | FR | GR | HF | HK | IS | JK | LU | MN | NE | NO | OK | OR | PD | PL | R3 | TS | TU | TV | VA | In Stock
$22.79
- Bases facilitate quick and secure detector integration
- Multiple base designs suit diverse application standards
- SEMS screws ensure straightforward wiring connections
- Diameter: 6.1" (15.49 cm)
- Compatible with wire gauges from 12 to 24 AWG
- Temperature operating range: -4°F to 150°F (-20°C to 66°C)
- Operating voltage range: 15 to 32 VDC
- Maximum standby current: 170 µA
- Feature sets tailored to application-specific needs
- Sounder bases comply with both UL 268 and UL 464 standards
SKU:
B300-6-IV
Categories: Detector Bases, Fire, Fire Detection Devices
Brand: Fire-Lite Alarms by Honeywell
| General Information | |
| Brand Name | Fire-Lite Alarms by Honeywell |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | B300-6-IV |
| Product Model | B300-6-IV |
| Product Name | B300-6-IV Heat Detector Base |
| Product Series | B300 |
| Product Type | Smoke Detector Base |
| Physical Characteristics | |
| Color | White |
| Height | 0.7" |
| Product Color | White |
| Power Description | |
| Input Voltage | 15V DC, 32V DC |
| Technical Information | |
| Device Supported | Heat Detector, Smoke Detector |
