Description

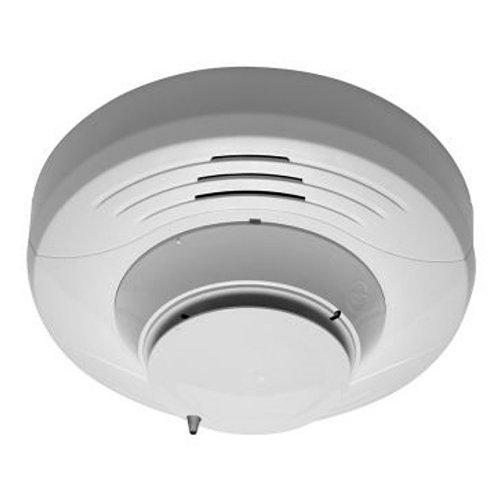

The SD365CO is an advanced addressable fire and carbon monoxide (CO) detector engineered to deliver distinct alerts for fire and CO incidents. This state-of-the-art multi-sensor detector leverages four detection technologies—photoelectric, infrared, heat, and CO—to provide accurate identification of fire and CO hazards while maintaining a high resistance to false alarms. When integrated with the B200S-WH sounder base or the B200S-LF-WH low frequency sounder base (available separately), the SD365CO can emit distinct alarms tailored to fire and CO situations. It features a sleek white finish and incorporates a 10-year CO sensor for long-lasting performance. The detector is fully compatible with ES-50X and ES-200X addressable fire alarm control panels, offering seamless integration for comprehensive fire safety solutions.

Certifications
UL ListedYes

Controls/Indicators
Status IndicatorsAlarm, LED

General Information
Brand NameFire-Lite Alarms by Honeywell
ManufacturerHoneywell International, Inc
Manufacturer Part NumberSD365CO
Packaged Quantity1
Product ModelSD365CO
Product NameSD365CO Addressable Combination Fire/CO Detector
Product SeriesSD365
Product TypeGas/Smoke Detector

Miscellaneous
CertificationsUL 2075, UL 268, UL 521
CompatibilityFire-Lite ES-50X & ES-200X addressable fire alarm control panels.
FeaturesBuilt-in feature- functional test switch activated by external magnet- walk test with address display, Designed & to mount directly on the surface or the electrical box, Factory preset at 1.5% nominal sensitivity for panel alarm threshold level, LED blinks when the unit is polled (communicating with the fire panel) and latches in alarm, Low standby current, Removable cover and screen for simple field cleaning, Sealed against back pressure, Separate base with SEMS screws for wiring allows interchange of photoelectric, ionization and thermal sensors, optional relay, isolator, and sounder bases, Stable communication technique with noise immunity, Two-wire SLC loop connection
Package ContentsSD365 Smoke Detector Mounting Base Trim Ring

Physical Characteristics
ColorWhite
Form FactorSurface Mount
Height2.7"
Weight (Approximate)3.40 oz

Power Description
Input Voltage32V DC

Product Information
Diameter6.9"

Technical Information
AddressableYes
Connectivity TechnologyWired
Detectable GasCarbon Monoxide
Detectable MediumFire, Gas
Sensing TechnologyInfrared, Photoelectric
Sensor TypePhotoelectric
