in stock
In Stock
$99.59

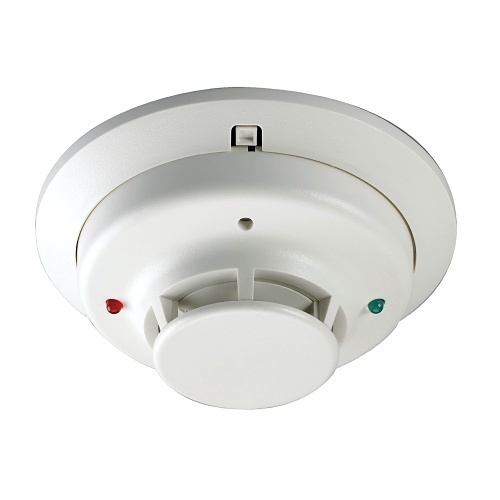

Honeywell Home V-Plex Addressable Photoelectric Smoke Detectors offer comprehensive open area protection and are compatible with UL or ULC-listed control panels featuring V-Plex technology. These detectors utilize a cutting-edge optical sensing chamber and an advanced microprocessor. The integrated Drift Compensation algorithms ensure optimal performance by automatically calibrating detection levels, even when sensitivity is affected by contaminants accumulating in the chamber.
| Certifications | |
| UL Listed | Yes |
| General Information | |
| Brand Name | Honeywell Home |
| Manufacturer | Resideo |
| Manufacturer Part Number | 5193SD |
| Product Line | V-Plex |
| Product Model | 5193SD |
| Product Name | 5193SD Smoke Detector |
| Product Type | Smoke Detector |
| Miscellaneous | |
| Additional Information | Easy InstallationTest buttonTamper Protection and Tamper Resistance |
| Certifications | UL 268 |
| Compatibility | VISTA control panels that support V-Plex (addressable) polling loop technology |
| Features | Built-in tamper switch communicates back to the control panel in the event the detector is removed from its base, Includes an element that prevents removal from the base without the use of tools, Installation is simplified by the use of a mounting base that may be pre-wired to the system, Mounting is made simple with the included hardware and the large mounting ports, which accommodate drywall anchors for easy surface mounting, Test button allows the user to perform periodic testing of detector circuitry and verify that the detector is within the sensitivity limits, Two LEDs (green and red) provide local visual indication of the detector?s status, including normal operation, alarm, out of sensitivity and trouble conditions |
| Package Contents | 5193SD Smoke DetectorMounting Hardware |
| Physical Characteristics | |
| Application/Usage | Fire Safety and Protection |
| Color | White |
| Form Factor | Ceiling Mount |
| Height | 2" |
| Weight (Approximate) | 6.3 oz |
| Power Description | |
| Input Voltage | 14V DC, 7V DC |
| Product Information | |
| Diameter | 5.3 in |
| Technical Information | |
| Addressable | Yes |
| Connectivity Technology | Wireless |
| Detectable Medium | Fire |
| Sensing Technology | Photoelectric |
| Sensor Type | Photoelectric |
| Warranty | |
| Limited Warranty | 1 Year |
