Brand: Fire-Lite Alarms by Honeywell

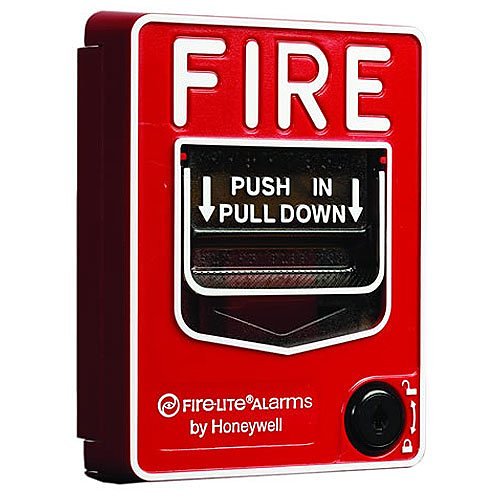

Fire-Lite BG-12L Dual-Action Pull Station with SPST N/O Switch, Screw Terminal Connections, Key Lock

Name: Fire-Lite BG-12L Dual-Action Pull Station with SPST N/O Switch, Screw Terminal Connections, Key Lock
Brand: Fire-Lite Alarms by Honeywell
SKU: BG-12L
Availability: InStock

in stock

AB | AK | AL | AS | AT | AU | AX | BE | BF | BH | BK | BN | BR | BT | BU | BV | CB | CD | CH | CI | CL | CS | DA | DC | DL | DN | DV | EF | EG | FC | FF | FI | FM | FN | FR | FW | GD | GR | HA | HF | HI | HK | HU | ID | IS | JX | KX | LB | LD | LE | LS | LT | LU | LV | MA | MB | MC | ML | MO | MS | ND | NE | NH | NO | NS | NV | OH | OK | OL | OR | OZ | PB | PC | PD | PL | PN | PO | PX | R3 | RC | RD | RM | RN | RS | SA | SC | SD | SE | SF | SL | SM | SO | SY | TP | TS | TU | TV | VA | VB | WB | In Stock

$50.39

Eye-catching, highly visible design and color scheme
Braille text integrated on the operational handle and across the top for accessibility
Available in various hex and key-lock configurations
Compliant with UL 38, the standard for manually actuated signaling devices
Inspection and maintenance are possible without triggering an alarm
Product ID label easily viewable by opening the cover, crafted from durable, long-lasting material
Terminal strip features Phillips combination-head captive 8/32 screws for straightforward connectivity to the Initiating Device Circuit (IDC)
Factory-prepared terminal screws, shipped ready for field wiring up to 12 AWG/3.1 mm
Terminal numbers are molded into the backplate, eliminating the requirement for labels
Engineered as a replacement for the legacy FireLite BG-10 Series

SKU: BG-12L Categories: Dual Action Pull Stations, Fire, Fire Pull Stations Brand: Fire-Lite Alarms by Honeywell

Description

The Fire·Lite BG-12 Series is an economical and feature-rich line of manual fire alarm pull stations ideal for various fire protection applications. Designed with both installers and end-users in mind, the BG-12 Series offers diverse models, including single-action and dual-action variants. This series provides manual alarm initiation input signals for Fire·Lite Alarm Control Panels (FACPs) and other compatible control panels. With its innovative design, robust construction, and versatile mounting options, the BG-12 Series is easy to install, maintain, and operate in any fire safety system.

General Information
Brand Name	Fire-Lite Alarms by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	BG-12L
Product Model	BG-12L
Product Name	BG-12L Pull Station
Product Series	BG
Product Type	Pull Station

Miscellaneous
Features	Key Lock

Physical Characteristics
Application/Usage	Fire Alarm
Depth	1.4"
Form Factor	Surface Mount
Height	5.5"
Material	PC
Product Color	Red
Width	4.1"

Power Description
Input Voltage	30V DC

Product Information
Finishing	Textured
Print/Message	Fire, Pull Down, Push In

Technical Information
Pull Station Type	Double Action
