Brand: Fire-Lite Alarms by Honeywell

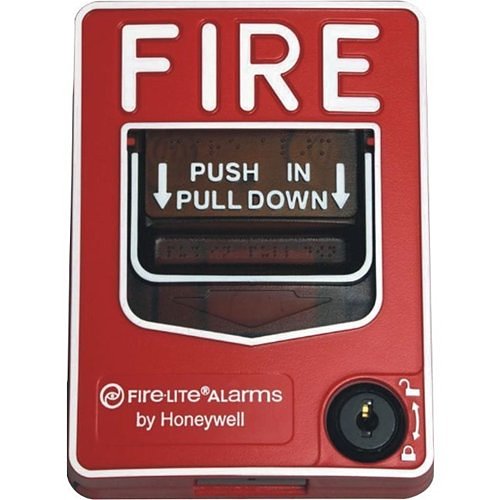

Fire-Lite BG-12LX Dual Action Addressable Pull Station with Key Locking Feature

Name: Fire-Lite BG-12LX Dual Action Addressable Pull Station with Key Locking Feature
Brand: Fire-Lite Alarms by Honeywell
SKU: BG-12LX
Availability: InStock

in stock

AB | AK | AL | AS | AT | AU | AX | BE | BF | BH | BK | BN | BR | BT | BU | CH | CI | CL | CS | CT | DA | DC | DL | DN | DV | EF | EG | FC | FF | FI | FM | FN | FR | FW | GD | GR | HA | HF | HI | HK | HO | ID | IS | JK | JX | KX | LB | LD | LE | LS | LT | LU | LV | MA | MB | MC | ML | MN | MO | MS | ND | NE | NH | NO | NS | NV | OH | OK | OL | OR | OZ | PB | PC | PD | PL | PN | PO | PX | R3 | RC | RD | RM | RN | RS | SA | SC | SE | SF | SK | SL | SM | SO | SP | SY | TP | TS | TU | TV | VA | VB | WB | In Stock

$119.29

Technicians can access the unit for inspection and configuration without triggering an alarm event
Integrated dual-color LED indicator, flashing during standard operation and remaining steady red when an alarm is activated
The handle locks in a downward position, displaying "ACTIVATED" to clearly signal that the unit has been triggered
Captive screw terminals facilitate seamless connection to the SLC loop
Options for surface or semi-flush installation
Sleek dual-action design
Compliant with ADAAG control and operating mechanism guidelines (Section 4.1.313); fulfills ADA specifications for a maximum activation force of 5 lbs
High visibility
Elegant design with a textured finish
Key reset functionality

SKU: BG-12LX Categories: Dual Action Pull Stations, Fire, Fire Pull Stations Brand: Fire-Lite Alarms by Honeywell

Description

The Fire-Lite BG-12LX is an advanced, dual-action pull station designed for seamless operation with addressable fire alarm control panels (FACPs). This sophisticated fire safety device requires two distinct motions to activate, ensuring reliable performance. Equipped with an addressable interface, the BG-12LX enables precise identification of the station’s location on the control panel, allowing fire response teams to swiftly pinpoint and respond to the source of an alarm.

Environmental Conditions
Maximum Operating Temperature	120°F (48.9°C)

General Information
Brand Name	Fire-Lite Alarms by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	BG-12LX
Product Model	BG-12LX
Product Name	BG-12LX Pull Station
Product Series	BG
Product Type	Pull Station

Physical Characteristics
Material	PC
Shipping Weight (Approximate)	0.6 lb

Power Description
Input Voltage	24V DC

Product Information
Print/Message	Pull Down, Push In

Warranty
Limited Warranty	3 Years
