Brand: Altronix

Altronix AL842ADA220 NAC Power Supply, Class or Class Outputs, 24VDC at 8A, 220VAC, BC600 Enclosure, Red

Name: Altronix AL842ADA220 NAC Power Supply, Class or Class Outputs, 24VDC at 8A, 220VAC, BC600 Enclosure, Red
Brand: Altronix
SKU: AL842ADA220
Availability: InStock

in stock

Special Order

$535.99

2-wire horn/strobe synchronization mode enables clear separation of audible alerting devices (horns) and visual alerting devices (strobes), ensuring continuous operation of strobes even when horns are silenced.
Supports synchronization protocols, including those from Potter/Amseco, Faraday, Gentex, System Sensor, and CooperWheelock.
Offers Temporal Code 3, Steady Mode, and Input to Output Follower Mode for seamless coordination of notification appliance circuits.
Compatible with both 12VDC and 24VDC fire alarm panels.
Facilitates output loop supervision directed to either input 1 or input 2.
Features Signal Circuit Trouble Memory for rapid identification of intermittent or persistent faults (such as short circuit, open, or ground faults) across one or more signaling circuit outputs, with LEDs indicating fault locations.
Includes a common trouble input and output feature.
Incorporates ground fault detection capability.

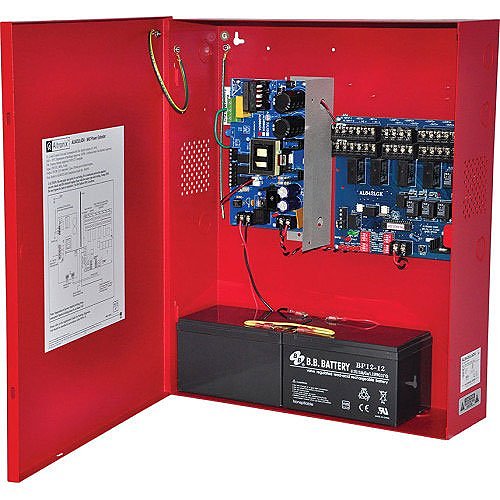

Comes equipped with a power supply, logic board enclosure, cam lock, and battery leads.

SKU: AL842ADA220 Categories: Fire, Fire Relays & Power, Power Supplies Brand: Altronix

Description

The Altronix AL842ADA220 is a highly cost-effective voltage-regulated remote NAC power extender designed to integrate with any 24-volt fire alarm control panel (FACP). Ideal for expanding Notification Appliance Circuits (NAC) and supporting auxiliary power needs, this device meets ADA requirements while enhancing system accessory capabilities.

Controls/Indicators
Status Indicators	Input and output status LED indicators.

Environmental Conditions
Maximum Operating Temperature	120.2°F (49°C)
Minimum Operating Temperature	32°F (0°C)

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL842ADA220
Product Model	AL842ADA220
Product Name	AL842ADA220 NAC Power Extender
Product Type	Power Extender Module

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Features	LED Indicator

Physical Characteristics
Color	Red
Depth	4.6"
Form Factor	Wall Mount
Height	18"
Weight (Approximate)	16.90 lb
Width	14.5"

Power Description
Input Voltage	220V AC

Technical Information
Device Supported	Fire Alarm Control Panel

Warranty
Limited Warranty	Lifetime
