Description

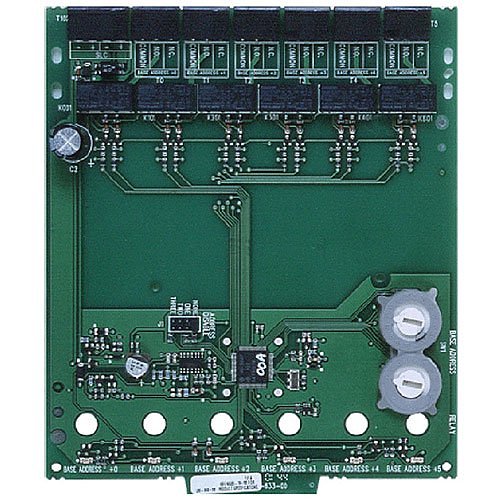

The Fire-Lite CRF-300-6 six-relay control module is designed for advanced fire alarm systems, featuring six Form-C relays for versatile application. The initial module can be assigned an address ranging from 01 to 154, with subsequent modules automatically following five consecutive address increments. There is functionality to disable up to three unused modules, optimizing system configuration. Each module address comes with a single set of isolated dry relay contacts, which can be configured for either normally-open or normally-closed operations, facilitating command-driven contact switching. The system does not supervise the controlled circuit. Additionally, every CRF-300-6 module is equipped with control panel-managed green LED indicators, allowing the panel to manage blinking, latching on, or latching off functions.
