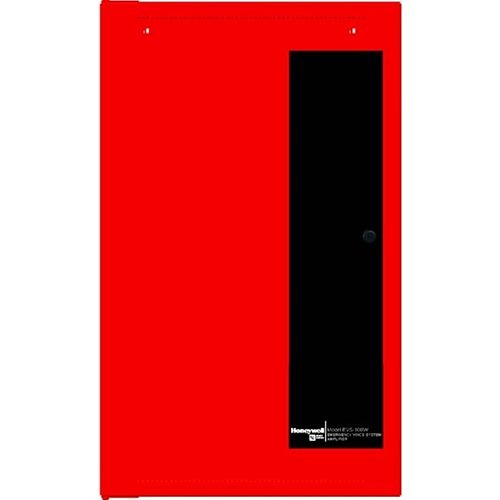

Silent Knight EVS-100W Voice Evacuation Amplifier Module

Name: Silent Knight EVS-100W Voice Evacuation Amplifier Module
Brand: Silent Knight by Honeywell
SKU: EVS-100W
Availability: InStock

in stock

Special Order

$2,950.46

Integrated backup amplifier test functionality enables physical testing to ensure optimal amplifier performance.
Supports up to four amplifiers per 5820XL-EVS or 6820EVS system, distributed across a maximum of 32 audio circuits.
Amplifier bandwidth ranges from 400 Hz to 4000 Hz.
Six-wire connection to the EVS system, comprising two wires for the voice bus and four wires for SBUS connections.
Capable of being installed up to 6000 feet from the 5820XL-EVS or 6820EVS control panel.
Complies with UL 864 and UL 2572 standards.
UL listed for continuous or ANSI 520Hz speaker tones, fulfilling NFPA 72 Low Frequency Signal Requirements for sleeping areas; refer to the FACP manual for compatible speaker listings.
Operates on 120 VAC or 240 VAC power.

SKU: EVS-100W Categories: Fire, Voice Evacuation Systems Brand: Silent Knight by Honeywell

Description

The EVS-100W is an advanced 50/100 watt amplifier designed for compatibility with the 5820XL-EVS system, version 14.0 or later. This intelligent amplifier is utilized to enhance and distribute audio messages throughout a facility. With the capability to deliver up to 100 watts of audio power, the EVS-100W also offers an optional backup power supply of 50 watts.

General Information
Brand Name	Silent Knight by Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	EVS-100W
Product Model	EVS-100W
Product Name	Voice Evacuation Amplifier Module
Product Type	Voice Evacuation Amplifier Module

Miscellaneous
Compatibility	Silent Knight 5820XL-EVS Addressable Fire Alarm Control Panel

Physical Characteristics
Application/Usage	Control Panel
Height	26.5"
Product Color	Red
Width	16.1"

Power Description
Input Voltage	120/240V AC
