Brand: Honeywell Home

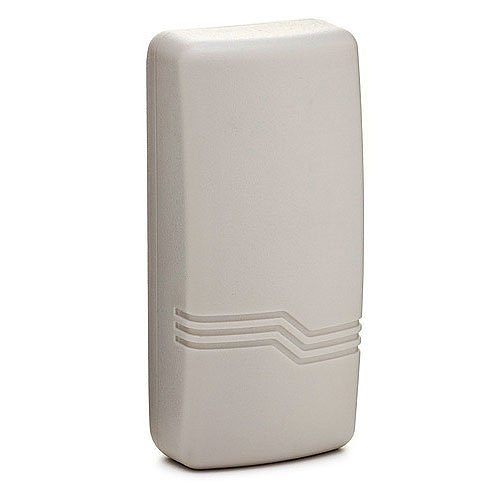

Honeywell Home 5817CBXT Wireless High-Security Transmitter

Name: Honeywell Home 5817CBXT Wireless High-Security Transmitter
Brand: Honeywell Home
SKU: 5817CBXT
Availability: InStock

in stock

In Stock

$110.39

The 5817CBXT features three distinctive input loops (zones) for security applications.
The primary loop is supervised, ideally suited for high-priority alarm signaling such as high-security fire or intrusion, with transmission every four seconds.
The second loop integrates a built-in, normally closed reed switch designed for use with a magnetic contact.
The third loop is an additional normally closed loop for household intrusion detection, allowing the utilization of all three loops.
A fourth, automatically enrolled loop includes two tamper switches for enhanced protection of the 5817CBXT.
Certified by UL standards for both residential and commercial fire and intrusion use.
Powered by a CR123 Lithium battery.
Product dimensions are 1-9/16" W x 3-1/2" H x 1-3/16" D (40mm x 89mm x 30mm).

SKU: 5817CBXT Categories: Alarm Contacts, Intrusion, Magnetic Contact Transmitters Brand: Honeywell Home

Description

The 5817CBXT is a versatile contact-monitoring transmitter ideal for integrating with residential and commercial fire and intrusion-initiating devices, including door/window contacts, motion detectors, glassbreak sensors, sprinkler water flow switches, tamper switches, post indicator valves, manual pull stations, and remote duct detectors. When activated, it transmits an RF signal to a control panel, alerting a central station of a security breach or fire incident.

General Information
Brand Name	Honeywell Home
Manufacturer	Resideo
Manufacturer Part Number	5817CBXT
Product Model	5817CBXT
Product Name	Wireless Commercial Transmitter
Product Series	5800
Product Type	Security Wireless Transmitter
Switch Action	Reed Switch (Loop 2)

Miscellaneous
Compatibility	5800 Series Receiver - Wireless
Indoor/Outdoor	Outdoor

Physical Characteristics
Application/Usage	Security System Sensors
Color	White
Depth	1.2"
Form Factor	Surface Mount
Height	3.5"\|89 mm
Width	1.56"\|40 mm

Power Description
Power Source	Battery Powered

Product Information
Installation Type	Commercial, Residential
