Description

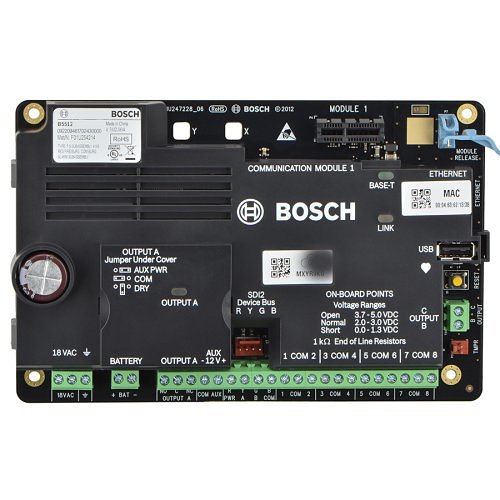

The B5512 Control Panel offers seamless integration of security and residential fire systems, providing users with a unified interface for effective control and monitoring. This advanced panel supports up to 48 fully identifiable zones, which can be organized into 4 distinct areas. Designed for versatile communication, the control panel features a built-in Ethernet port (excluding “E” models) and allows the use of compatible plug-in modules for network communication via PSTN or cellular connections.
Perfect for surveillance of doors, windows, and motion detection in areas like showrooms or inventory spaces, the B5512 offers personalized security through user-specific passcodes, wireless keyfobs, and access credentials. Utilize customizable authority levels to manage access for service, security, and cleaning staff, ensuring secure and flexible operations. The system is equipped with three programmable outputs (expandable up to 43), facilitating automated functions such as lighting control and door lock management.
Key functionalities include:
– Securing specific zones such as stockrooms during business hours.
– Conducting system diagnostics to confirm operational integrity.
– Immediate alarm activation upon unauthorized door openings.
– Enabling the Watch feature for audio alerts when someone enters a monitored area.
– Scheduling automatic system arming at closing times.
– Leveraging wireless security solutions for system customization.
Remote monitoring stations ensure 24/7 system surveillance, enabling professional security operatives to conduct system tests, track activities, and notify emergency services if needed.
**Programmable Outputs:**
– Three on-board outputs: one high current via relay and two trigger outputs.
– Output A supports up to 1.0 A from AUX PWR with a 3 Amps contact rating.
– Outputs B and C accommodate up to 50 mA at 12 VDC.
– Features four distinct alarm-output patterns.
– Includes a programmable bell test function.
**Point Response:**
– 20 customizable point profiles.
– Adjustable response times for points.
– Cross point integration.
– Fire alarm verification and hazardous gas alerts compliant with NFPA 720 (including carbon monoxide detection).
– Watch mode feature.
**User Interface:**
– Supports up to 8 keypads for system supervision.
– Allows full customization of keypad text via RPS or the Installer Services Portal (available in Europe, Middle East, Africa, and China).
– Comprehensive menu with custom function options.
– Offers authority controls and 32-character user name configuration.
– Features 14 custom authority levels for feature access restriction.
– Provides programmable language settings for primary and secondary use, supporting 9 languages.
**Area Configurations:**
Multiple zones can be linked to a common area, such as a lobby, which automatically arms when all related zones are secured and disarms when any associated zone is unarmed. For heightened security needs, the Area Re-Arm feature ensures zones are rearmed promptly, minimizing the downtime for any specific duration.
