Winland EA200-12 EnviroAlert 2-Zone Alarm Monitor, 12V DC

Brand: Winland Electronics

Winland EA200-12 EnviroAlert 2-Zone Alarm Monitor, 12V DC

Name: Winland EA200-12 EnviroAlert 2-Zone Alarm Monitor, 12V DC
Brand: Winland Electronics
SKU: EA200-12
Availability: InStock

in stock

In Stock

$126.78

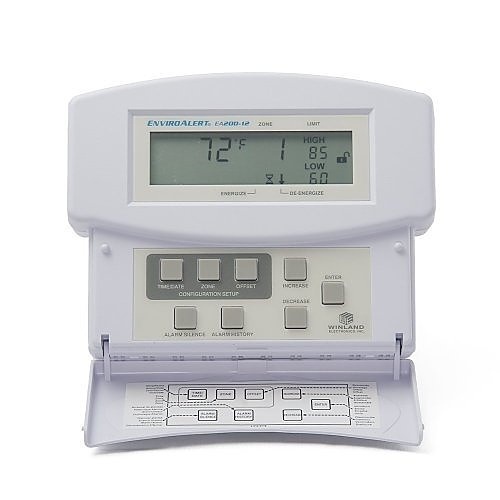

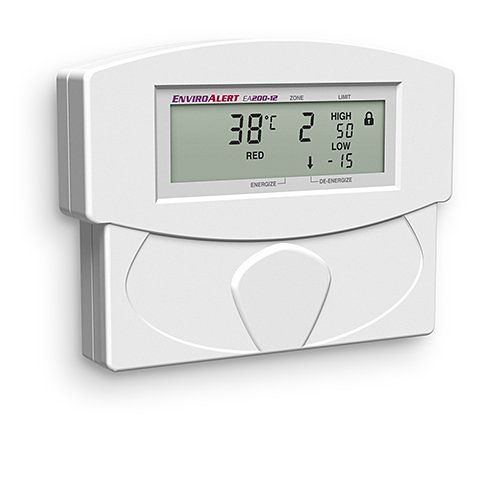

Simultaneously operate an integrated sensor and an optional external sensor (available separately) with a user-friendly LCD display and secure, tamper-proof lock settings.
Store up to 8 event incidents in memory, complete with time and date, and utilize an auxiliary output relay for a local audible alarm (not provided) with a silence feature and programmable alarm delay options ranging from 10 to 120 minutes for each zone.
Avoid placing the EA200-12 unit in cooler or freezer environments. Instead, connect a wired sensor to the EA200-12 for accurate measurements.
Calibrate sensor readings with an offset adjustment capability of up to ±9.0.
Requires power supply of 12V DC at 120mA.
Integrated temperature sensor suitable for ambient temperature ranges of 32 to 122°F (0 to 50°C).
Operational range of the unit extends from 32 to 122°F (0 to 50°C) in non-condensing environments.
Adjustable sensor limits range from -58 to +302°F (-50 to +150°C), depending on sensor type.
Features 2 configurable Form C (SPDT) alarm output relays (N.O./N.C.) and 1 fixed Form C (SPDT) auxiliary alarm output relay (N.O./N.C.).
The device measures 6.0" x 4.75" x 1.25" (15.24cm x 12.07cm x 3.18cm) in dimension.

SKU: EA200-12 Categories: Environmental Sensors, Intrusion, Temperature Sensors Brand: Winland Electronics

Description

The EnviroAlert EA200-12 environmental monitoring device offers comprehensive visibility for two distinct environmental zones, including onboard ambient temperature and an additional area that can be monitored for temperature, humidity, or water presence. Beyond the built-in visual alerts and the option for audible notifications through a third-party Piezo buzzer, when integrated with a security panel, it facilitates real-time incident alerts and enables prompt corrective measures.

Certifications
TAA Compliant	No

General Information
Brand Name	Winland Electronics
Manufacturer	Winland Electronics, Inc
Manufacturer Part Number	EA20012
Product Line	EnviroAlert
Product Model	EA200-12
Product Name	EnviroAlert EA200-12 Weather Station
Product Series	EnviroAlert 200
Product Type	Enviromental Monitoring Device

Miscellaneous
Environmental Certification	PROP65, REACH, RoHS
Environmentally Friendly	Yes
Features	Alarm, Alarm History, Built-in Keypad, On-Board Sensor, Relay Output, Timer

Physical Characteristics
Color	White
Depth	1.2"
Form Factor	2-Gang, Wall Mount
Height	4.8"
Product Color	White
Weight (Approximate)	8.82 oz
Width	6"

Power Description
Input Voltage	12V DC

Technical Information
Maximum Relative Humidity	95%
Minimum Relative Humidity	5%
