in stock
In Stock
$185.48
- Supports simultaneous functionality of one integrated sensor and one additional external sensor (available separately) with a clear LCD display and secure tamper-proof lock settings.
- Features an 8-event incident memory log, including time and date stamps, with an auxiliary output relay for a local audible alarm (not included), plus an alarm silence option with a 10-minute timer and programmable delay up to 120 minutes for each zone.
- Avoid using the unit in cooler or freezer environments; instead, connect an external wired sensor to the device.
- Allows for sensor reading adjustments with an offset range of ±9.0.
- Requires a power supply of 24V DC at 120mA.
- Includes an integrated temperature sensor for ambient temperature detection from 32 to 122°F (0 to 50°C).
- Operates effectively within a temperature range of 32 to 122°F (0 to 50°C) in non-condensing conditions.
- Features a sensor-dependent adjustable temperature range with low and high limits from -58 to 302°F (-50 to 150°C).
- Equipped with 2 configurable Form C (SPDT) alarm output relays (N.O./N.C.) and 1 non-configurable Form C (SPDT) auxiliary alarm output relay (N.O./N.C.).
- Device measurements are 6.0" x 4.75" x 1.25" (15.24 cm x 12.07 cm x 3.18 cm).

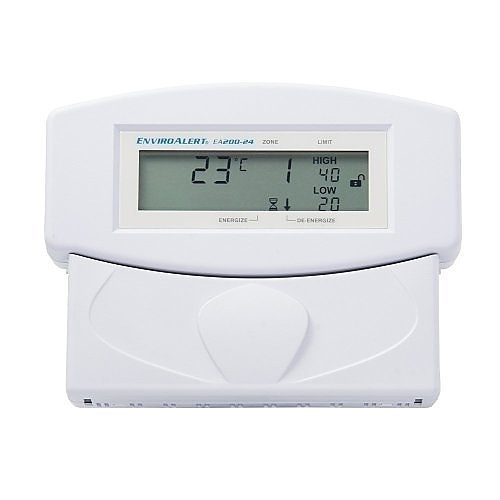

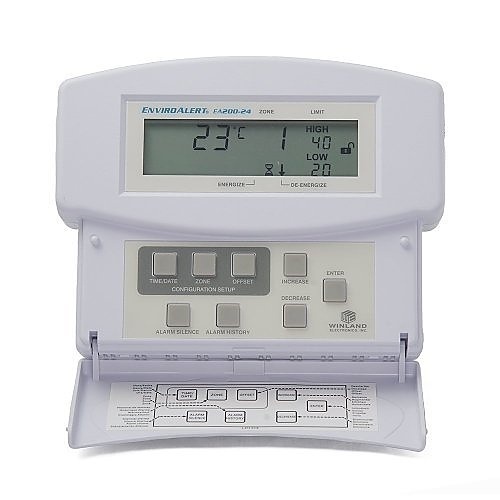

The EnviroAlert EA200-24 environmental monitoring device offers comprehensive monitoring for two distinct zones: on-board ambient temperature and an additional area that can track temperature, humidity, or water presence. This critical-environment device provides local visual and audible alerts, with a third-party Piezo buzzer required as an add-on. When integrated into a security panel, the system enables real-time incident notification and facilitates immediate corrective actions.
| Built-in Devices | |
| Built-in Devices | Hygrometer, Thermometer |
| Certifications | |
| TAA Compliant | No |
| General Information | |
| Brand Name | Winland Electronics |
| Manufacturer | Winland Electronics, Inc |
| Manufacturer Part Number | EA20024 |
| Product Line | EnviroAlert |
| Product Model | EA200-24 |
| Product Name | EnviroAlert EA200-24 Weather Station |
| Product Series | EnviroAlert 200 |
| Product Type | Enviromental Monitoring Device |
| Miscellaneous | |
| Environmental Certification | PROP66, REACH, RoHS |
| Features | Alarm, Alarm History, Built-in Keypad, On-Board Sensor, Relay Output, Timer |
| Physical Characteristics | |
| Color | White |
| Depth | 1.3" |
| Form Factor | 2-Gang, Wall Mount |
| Height | 4.8" |
| Weight (Approximate) | 8.82 oz |
| Width | 6" |
| Power Description | |
| Input Voltage | 24V DC |
| Technical Information | |
| Operating Distance | 1000 ft |
| Readings | Humidity, Temperature |
| Thermometer | |
| Maximum Temperature | 302°F (150°C) |
| Minimum Temperature | -50 |
