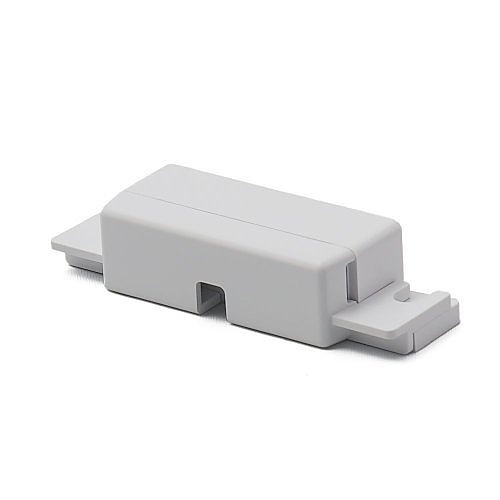

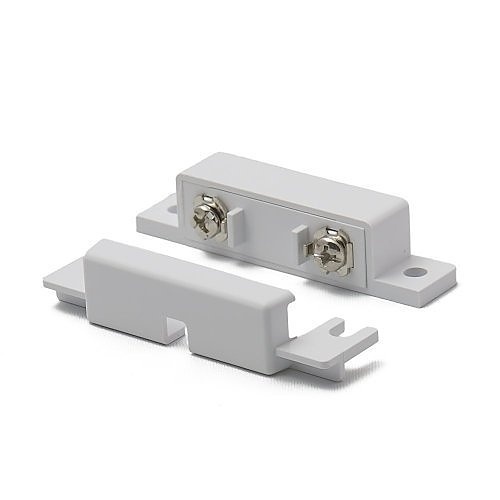

Winland TA-40 TempAlert Set Point Monitoring to Warn of Freezing Temperatures

Brand: Winland Electronics

Winland TA-40 TempAlert Set Point Monitoring to Warn of Freezing Temperatures

Name: Winland TA-40 TempAlert Set Point Monitoring to Warn of Freezing Temperatures
Brand: Winland Electronics
SKU: TA-40
Availability: InStock

in stock

In Stock

$32.00

No external power required for operation, easily integrates with most hardwired or wireless alarm systems.
Compact design for a discreet installation.
Avoid placing in refrigeration or freezing environments; suitable for non-condensing areas only.
Triggers a Normally Closed (N.C.) dry contact at temperatures exceeding 39.5°F (4.2°C).
N.C. (Normally Closed) dry contacts designed for low-voltage applications only.
Fixed N.C. setting activated at >39.5°F (>4.2°C).
Provides temperature measurement accuracy of ±5.4°F (±3.0°C).
Equipped with two screw holes for easy mounting.
Measures 2.5" x 0.8" x 0.55" (6.4cm x 2.0cm x 1.4cm).
Weighs 3.0oz (85.0g).

SKU: TA-40 Categories: Environmental Sensors, Intrusion, Temperature Sensors Brand: Winland Electronics

Description

The TempAlert TA-40 sensor integrates seamlessly with both hardwired and wireless alarm systems, triggering an alert if the temperature drops below 39.5°F (4.2°C). This proactive approach safeguards your facility against the risk of burst pipes and potential water damage.

Certifications
TAA Compliant	No

General Information
Brand Name	Winland Electronics
Manufacturer	Winland Electronics, Inc
Manufacturer Part Number	TA40
Product Line	Temp Alert
Product Model	TA-40
Product Name	Temp°Alert TA-40 Powerless Operation for Controlled Climates
Product Type	Mechanical Temperature Alert

Miscellaneous
Additional Information	Will activate virtually an alarm panel, dialer or wireless alarmNormally closed (NC) dry contacts at temperatures above +39.5°F (+4.17°C)Very small size for unobtrusive appearanceNo power required to operate
Environmental Certification	PROP65, REACH, RoHS
Environmentally Friendly	Yes

Physical Characteristics
Color	White
Form Factor	Surface Mount, Wall Mount
Weight (Approximate)	3 oz

Power Description
Input Voltage	24V AC, 24V DC

Technical Information
Connectivity Technology	Wired
Temperature Accuracy	±3°C
