Description
The AL600PD8220 is a versatile power supply/charger designed for the security and electronics industry, efficiently converting a nominal 220VAC, 50/60Hz input into eight (8) outputs of either 12VDC or 24VDC.

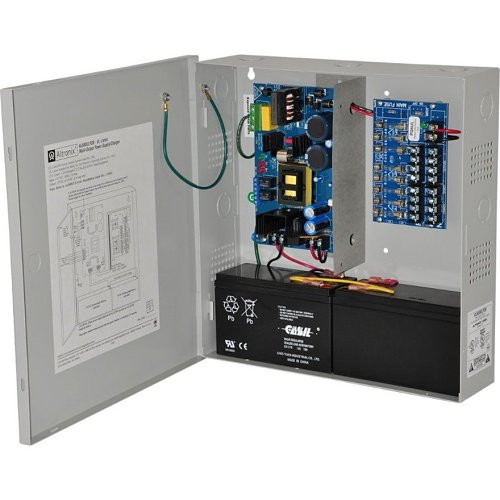

Altronix AL600PD8220 Access Power Supply Charger, Fused Outputs, 12/24VDC at 6A, 220VAC, BC300 Enclosure
in stock
In Stock
$300.62
- Offered with options for 1, 4, 8, or 16 outputs
- Protected outputs with either fused or PTC technology
- Supervisory features include: - AC Failure Detection - Battery Failure and Presence Monitoring
- Integrated charger compatible with sealed lead-acid or gel batteries
- Immediate switch to backup batteries
- Protection against short circuits and overloads
- Options for both AC input and DC output
- Complies with CE European Conformity standards
- Comes with a Lifetime Warranty
- Units available in grey or red enclosures
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL600PD8220 |
| Product Model | AL600PD8220 |
| Product Name | AL600PD8220 Power Supply |
| Product Type | Power Supply |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Color | Gray, Red |
| Depth | 3.3" |
| Form Factor | Enclosure |
| Height | 13.5" |
| Weight (Approximate) | 7.30 lb |
| Width | 13" |
| Power Description | |
| Input Voltage | 230V AC |
| Output Current | 6A |
| TBD | |
| Amperage | 6A |
| Technical Information | |
| Output Voltage | 12V DC at 6A, 24V DC at 6A |
| Warranty | |
| Limited Warranty | Lifetime |
