Description

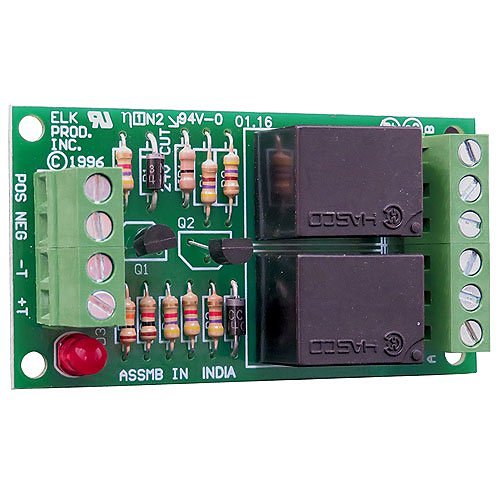

The ELK-924 Sensitive Relay module is designed for versatile switching applications, offering DPDT (Form “C”) dry contacts suitable for controlling various devices or high-current loads. This relay operates efficiently on either 12 or 24 volts DC and can be activated by a positive or negative input at an exceptionally low current requirement of just 1 milliamp.
For increased functionality, the ELK-924 is also available in a 4-pack (ELK-9244) configuration, which includes four relay modules arranged on a pre-scored break-off circuit board for easy segregation.
**Specifications:**
– **Operating Voltage:** 12 or 24 Volts DC, configurable via jumper
– **Current Draw:** 60mA with both relays active
– **Relay Contacts:** Form “C”, supporting 7A at 30VDC and 10A at 125VAC
– **Dimensions:** 1.5″ x 2.75″
– **Trigger Voltage:** 5 – 24VDC
– **Trigger Current:** 1.2mA at 12 VDC
