Description

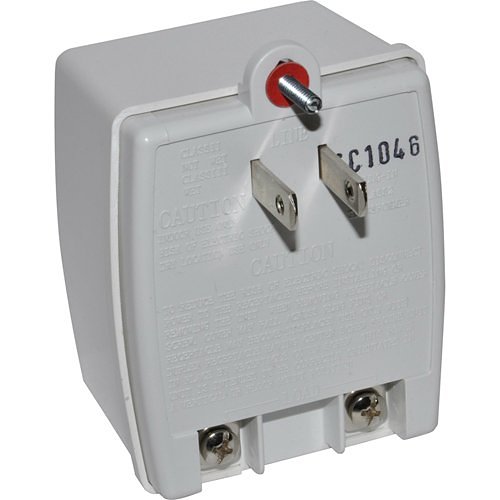

The Altronix TP2450 transformer delivers a 24VAC output with a total current capacity of 2A. It accepts an input of 115VAC at 50/60 Hz, drawing 0.5A. The unit provides an output of 24VAC/50VA (2A) and operates within a temperature range of 0°C to 49°C (32°F to 120°F). It can be stored in conditions ranging from -20°C to 70°C (-4°F to 158°F). The transformer has an approximate heat dissipation of 24 BTU/Hr and maintains a relative humidity of 85% +/- 5%. The AC input VA requirement for the system is 57.5VA.
