Brand: Honeywell Home

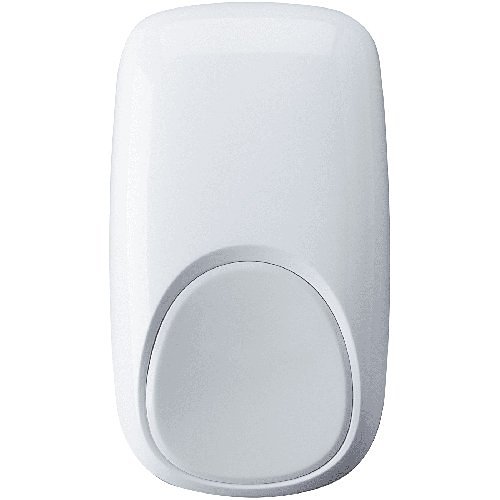

Honeywell Home IS3050A-SN V-Plex PIR Motion Detector with Mirror Optics and Anti-Mask High Risk Applications, 53′ 72′ Range (Replaces NC-IS3050ASN)

Name: Honeywell Home IS3050A-SN V-Plex PIR Motion Detector with Mirror Optics and Anti-Mask High Risk Applications, 53' 72' Range (Replaces NC-IS3050ASN)
Brand: Honeywell Home
SKU: IS3050A-SN
Availability: InStock

in stock

In Stock

$82.79

Offers superior density, breadth, and distance in detection coverage compared to other market offerings.
Utilizes mirror optics for the most dependable technology, ensuring an optimal detection-to-false alarm ratio.
Features an accessible, detachable connector for versatile wiring and simplified installation.
Incorporates an active infrared anti-masking capability that sensitively detects blocking, spraying, or obstruction attempts.
Utilizes a patented black bug guard with 6,500 lux white light immunity to minimize false alarms from lighting, flashlights, or reflective surfaces.
Enhances close-range coverage with multiple zones in the look-down area.
Minimizes installation time with a walk test feature that activates with a flashlight wave and automatically times out.
Patented integrated mounting design ensures screws remain in place for fast, efficient installations.
Adaptable for wall or corner mounting at heights ranging from 6' 9" to 8' 9" (2.1 m - 2.7 m).
Designed to meet numerous global motion detector standards, including UL, ULC, SIA, and EN50131-2.

SKU: IS3050A-SN Categories: Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors Brand: Honeywell Home

Description

The latest advancement in V-Plex® PIR motion sensors, inspired by the acclaimed IS3000 series, offers effortless installation, exceptional detection performance, and reduced false alarm rates. These sensors are seamlessly compatible with Honeywell Home and Resideo control panels that accommodate V-Plex technology, utilizing a two-wire loop system to optimize both cost and time efficiency.

General Information
Brand Name	Honeywell Home
Manufacturer	Resideo
Manufacturer Part Number	IS3050A-SN
Product Line	V-Plex
Product Name	V-Plex Passive Infrared Motion Sensor with Anti-Mask
Product Series	IS3000
Product Type	Motion Sensor

Miscellaneous
Environmental Certification	UL
Features	Anti-Masking
Indoor/Outdoor	Indoor

Others
ADI Part Number Replaces	NC-IS3050ASN
Model Number Replaces	IS3050A-SN

Physical Characteristics
Application/Usage	Motion Detection for Security Systems
Color	White
Depth	1.7"
Form Factor	Corner Mount, Surface Mount, Wall Mount
Height	4.6"
Weight (Approximate)	4.40 oz
Width	2.8"

Power Description
Input Voltage	15V DC
Power Source	DC Power

Product Information
Mount Type	Corner Mount, Wall Mount

Technical Information
Connectivity Technology	Wired
Maximum Motion Sensing Distance	53'
Passive Infrared Sensor (PIR)	Yes
