Description

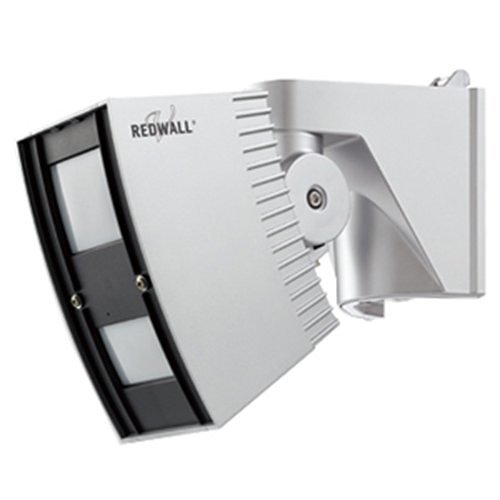

The REDWALL SIP series is comprised of advanced long-range volumetric outdoor PIR sensors engineered to seamlessly integrate with CCTV systems. These devices are pivotal in optimizing event-triggered surveillance solutions by directing cameras to specific intrusion zones, significantly reducing false alarms and enhancing overall system reliability. The SIP-3020 model is a hardwired PIR sensor offering a detection range of 30 meters in length by 20 meters in width, making it perfect for monitoring expansive areas such as car parks and yards. Specifically crafted to activate CCTV setups, the REDWALL SIP sensors can be easily connected to PTZ or fixed dome cameras, ensuring immediate system response upon detecting intrusions.
The SIP-3020 model is equipped with dual independent detection zones (far and near), each customizable for sensitivity, allowing precise camera presets to capture the optimal scene view for both local security operators and remote monitoring centers. Built to withstand challenging outdoor conditions, these sensors automatically adjust their sensitivity to ambient temperature and lighting, boasting an IP65 rating for the main unit. The PIRs are also vandal-resistant, featuring durable polycarbonate housing, an accelerometer for tamper detection, and active infrared (AIR) anti-masking technology.
Ideal Applications:
– Surveillance of buildings and approach areas
– Comprehensive coverage of expansive outdoor spaces
Key Features:
– Intelligent PIR offering 30m x 20m coverage for approach detection
– Proactive integration with CCTV systems
– Dual independent detection zones (far/near)
– Equipped with AIR anti-masking and designed to resist vandalism
