Description

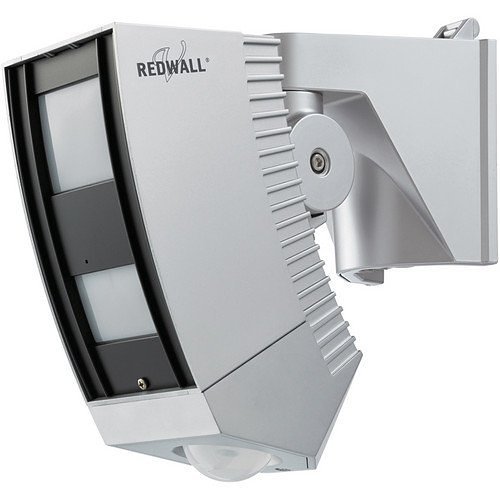

The REDWALL SIP series represents state-of-the-art long-range volumetric outdoor PIR sensors strategically engineered for seamless integration with CCTV systems to guide camera focus toward zones of intrusion. These outdoor PIR sensors boast exceptional stability in challenging external environments, yielding a remarkably low false alarm rate, and are vital for maintaining a robust event-triggered security infrastructure. The SIP-3020/5 model, with its hardwired design, offers a detection range of 30m by 20m, supplemented by an additional creep zone detection capability extending up to 6x9m, making it perfect for monitoring expansive areas like car parks and open yards.
Optimized for CCTV integration, the REDWALL SIP series is crafted to interface with PTZ and fixed dome cameras, prompting the CCTV system’s alert response upon detecting unauthorized activity. The SIP-3020/5 model is equipped with three distinct detection zones – far, near, and creep – each with independent sensitivity settings to trigger precise camera presets and capture the best possible scene imagery for local security personnel or remote monitoring centers.
Built to withstand harsh conditions, the SIP PIRs possess an IP65 rating, ensuring resilience to weather and vandalism. Their sensitivity automatically adjusts to ambient temperature and illuminance changes. Constructed with a polycarbonate housing, these sensors feature an accelerometer for tamper detection and active infrared antimasking capabilities.
Applications include comprehensive outdoor surveillance for buildings, driveways, and approach paths, offering key features such as 30x20m intelligent PIR coverage for detection, integration with CCTV systems, three independent detection zones, and superior vandal-resistant design.
